Transmission Temperature Sensor/Switch, A/T
>>
With 4L80 Transmission
With 4L80 Transmission

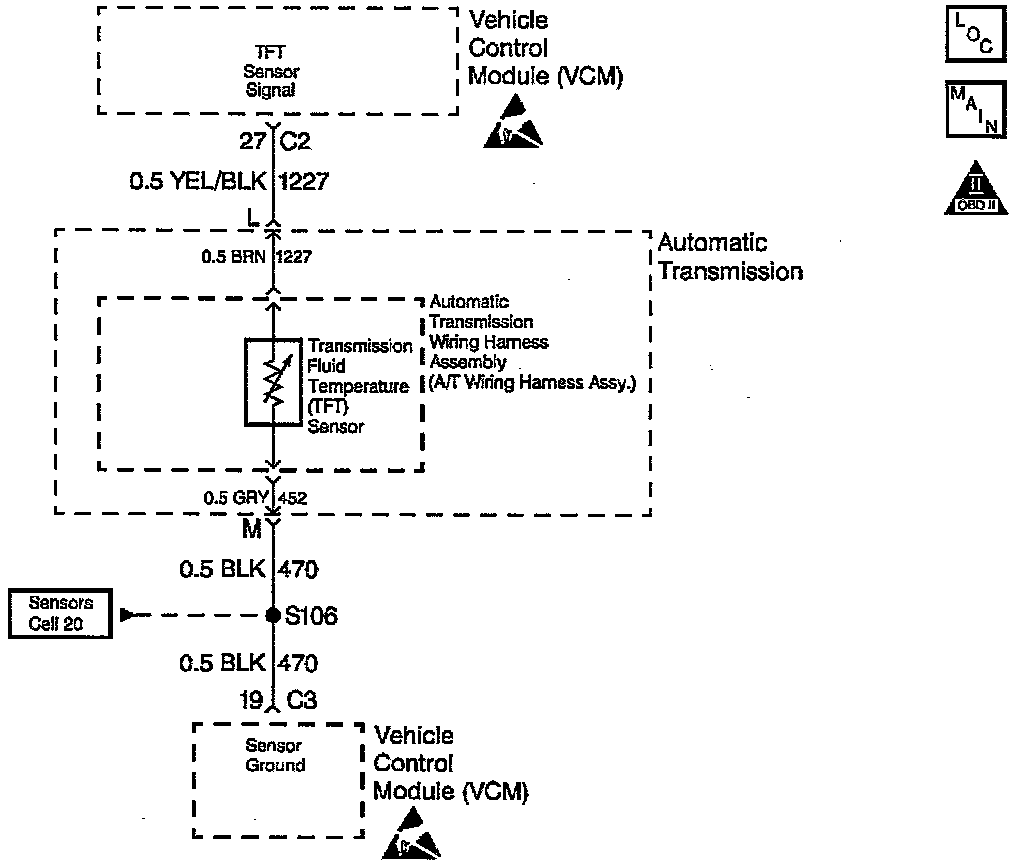

Wiring Diagram:
