Home >> Chevy Truck >> 1997 >> C Tahoe 2WD V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> Instrument Panel (I/P) Fuse Block - Fuses >> Fuse 16 - TURN B/U

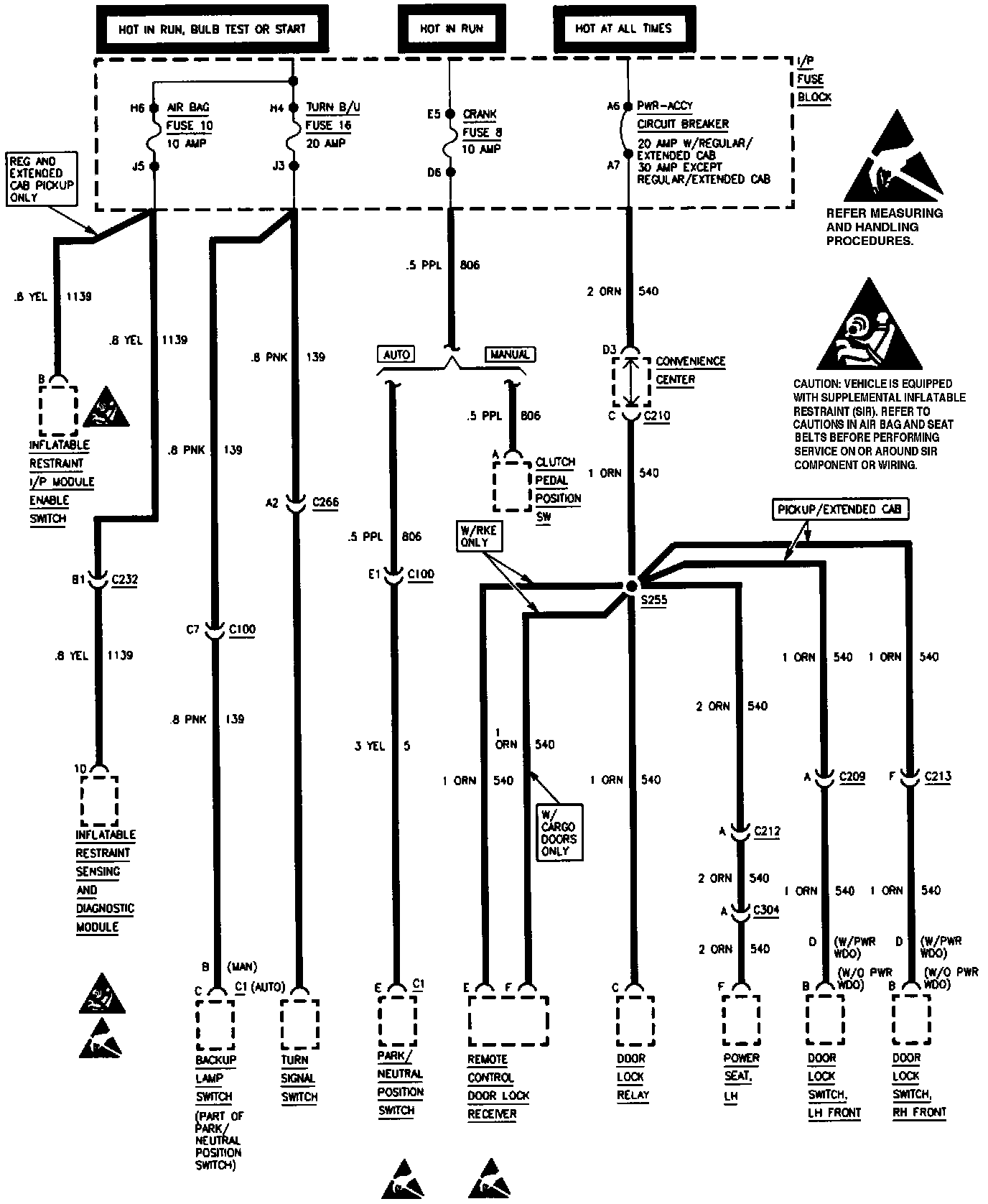

Fuse 16 - TURN B/U

Fuse Block Details:
