Air Bag Systems
>>
Air Bag Control Module
Air Bag Control Module

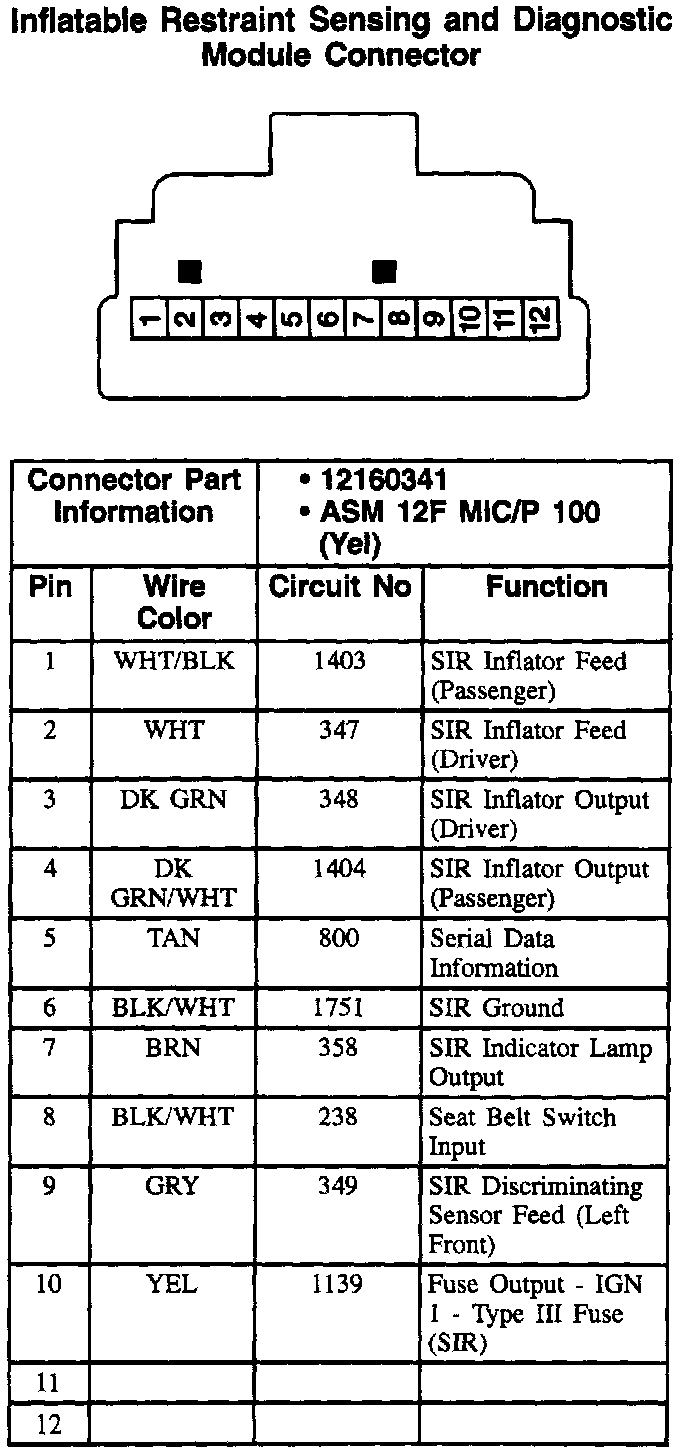

Inflatable Restraint Sensing And Diagnostic Module Connector:
