Auxiliary Mode Valve And Seal Assembly Connector, Rear

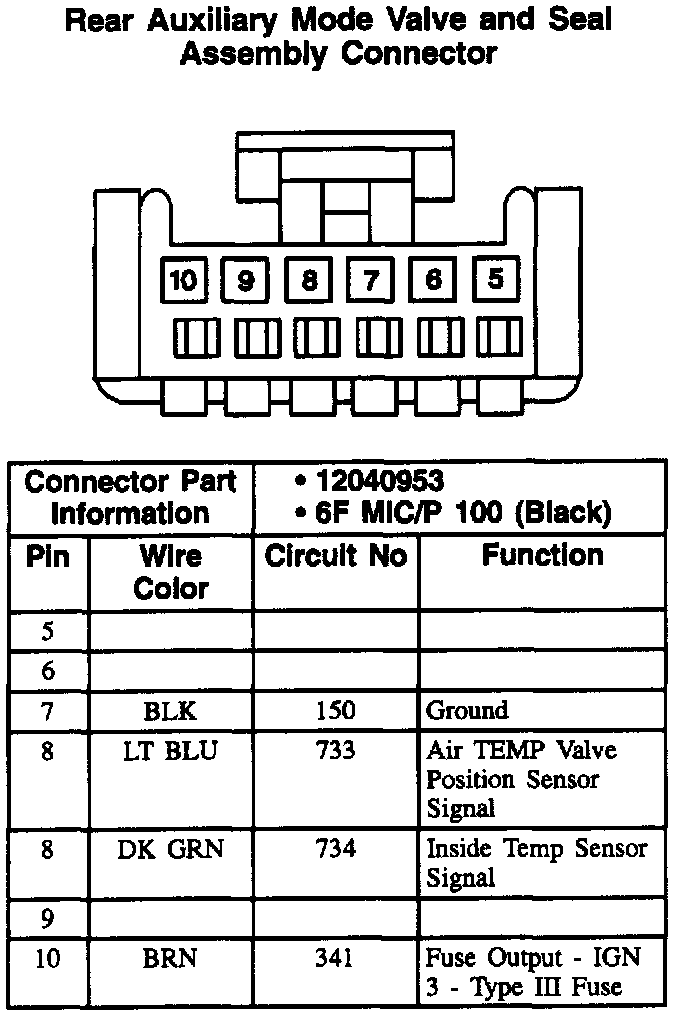

Rear Auxiliary Mode Valve And Seal Assembly Connector:
