Chevy Truck
>>
1997
>>
G 1500 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
System Diagram
System Diagram

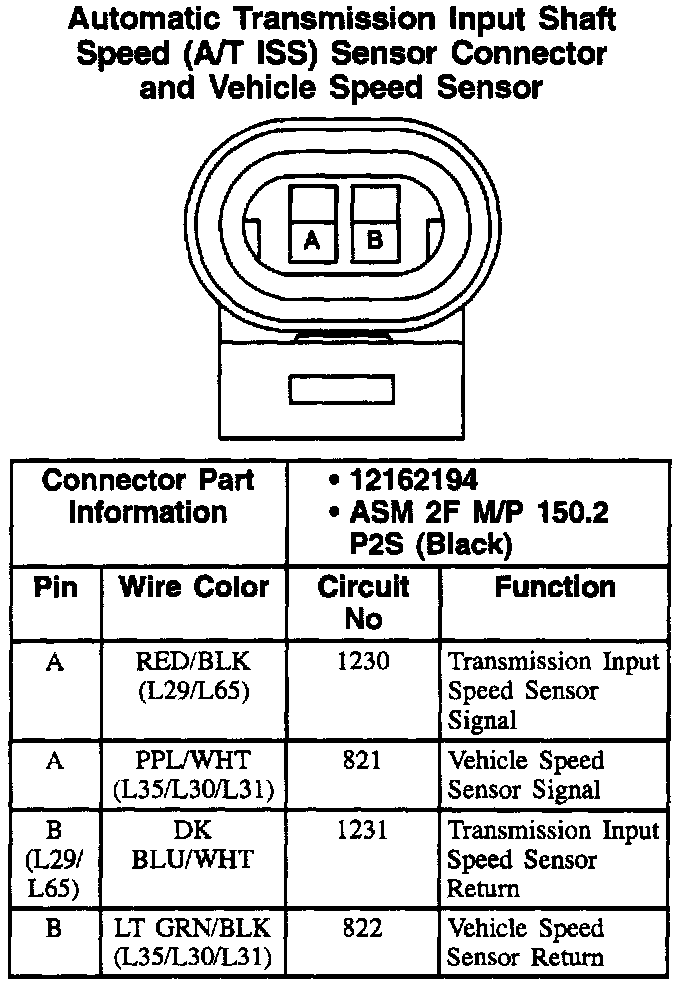

Automatic Transmission Input Shaft Speed (A/T ISS) Sensor Connector And Vehicle Speed Sensor:
