P0218

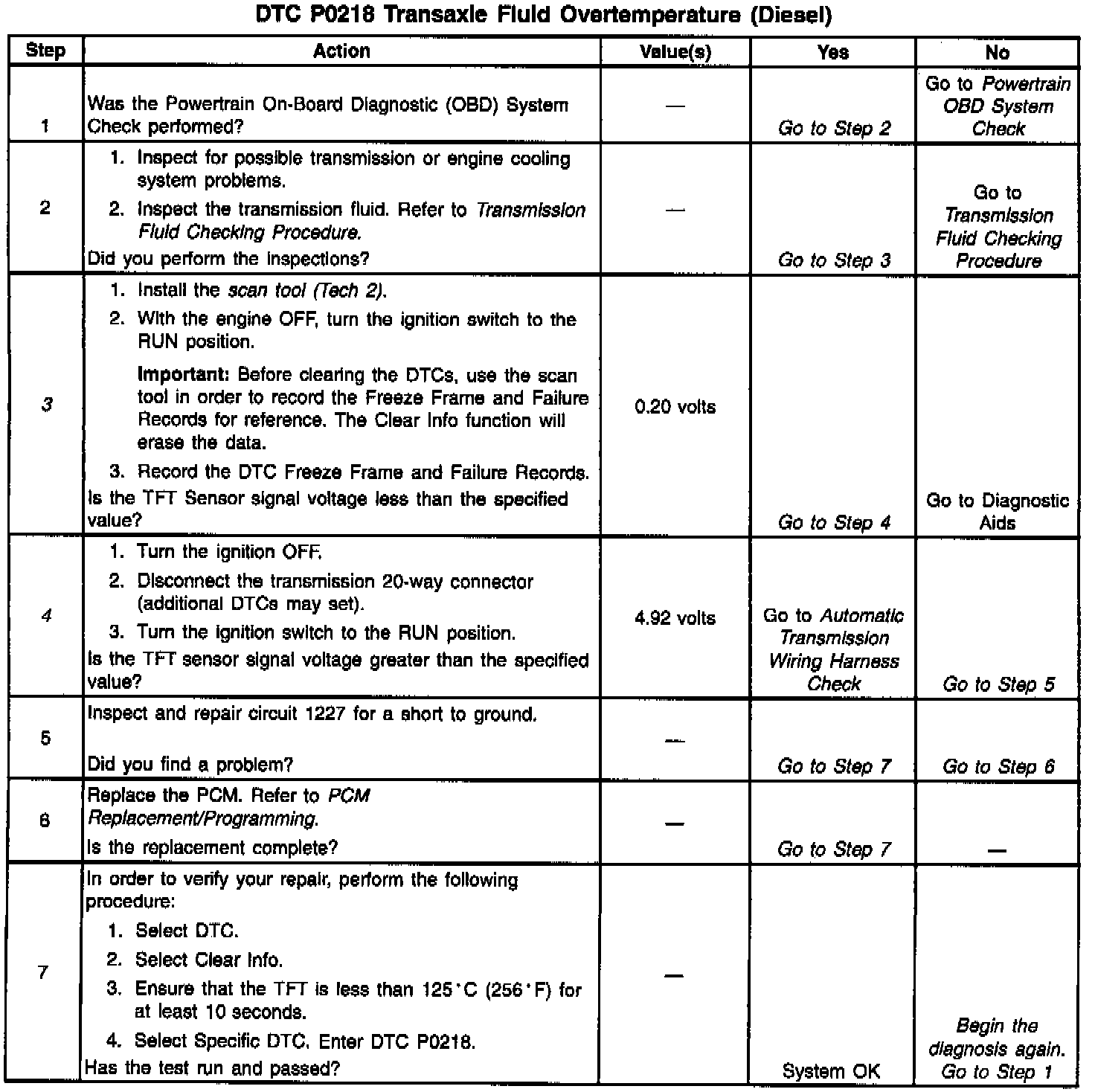

Diagnostic Chart:

Wiring Diagram:

CIRCUIT DESCRIPTION
The Automatic Transmission Fluid Temperature Sensor (TFT) Sensor is a thermistor that controls the signal voltage to the Powertrain Control Module (PCM). The PCM supplies a 5-volt reference to the sensor on circuit 1227. When the transmission fluid is cold, the sensor resistance is high and the PCM senses high signal voltage. As the fluid temperature warms to a normal transmission operating temperature, the TFT Sensor resistance becomes less and the voltage decreases.
If the PCM detects a high transmission fluid temperature (TFT) for a long period of time, then DTC P0218 sets. DTC P0218 is a type D DTC.

CONDITIONS FOR SETTING THE DTC
^ No TFT Sensor DTCs P0712 or P0713.
^ The TFT is greater than 135°C (275°F).
^ All conditions are met for 410 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The PCM freezes shift adapts from being updated.
^ The PCM does not illuminate the Malfunction Indicator Lamp (MIL).

CONDITIONS FOR CLEARING THE DTC
1. A scan tool can clear the DTC from the PCM history. The PCM clears the DTC from the PCM history if the vehicle completes 40 warm-up cycles without a failure reported.
2. The PCM cancels the DTC default actions when the fault no longer exists and the ignition is OFF long enough in order to power down the PCM.

DIAGNOSTIC AIDS
^ Inspect the cooling system's fluid level and condition.
^ Inspect the transmission cooler and cooler lines for damage and restrictions.
^ The scan tool Trans. Fluid Temp. should rise steadily then stabilize.
^ Inspect for a possible torque converter stator problem.
^ Verify the customer's driving habits, such as trailer towing, etc.
^ First diagnose and clear any engine DTCs that are present. Then inspect for any transmission DTCs that may have reset.

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table.
3. This step tests for a skewed sensor or shorted circuit.
4. This step simulates a TFT DTC P0713.
