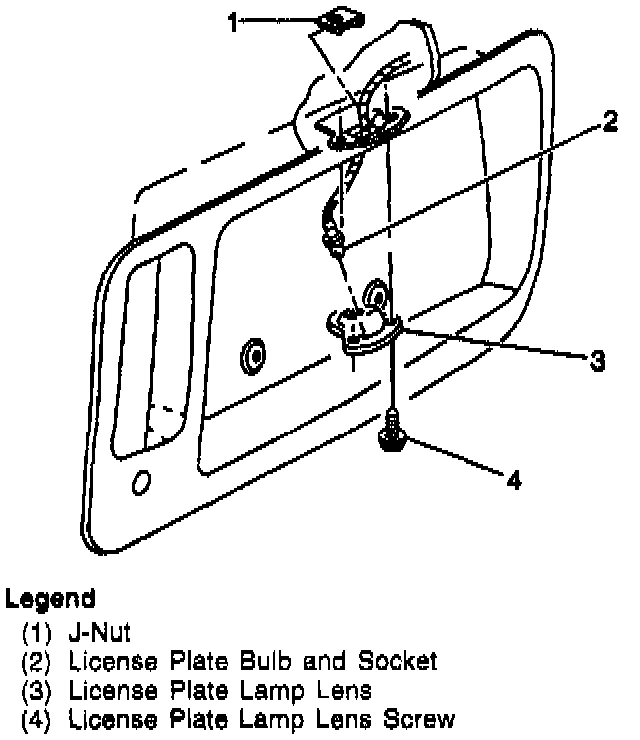

License Plate Lamp: Service and Repair

Description:






REMOVE OR DISCONNECT
1. The screws retaining the license plate lamp to the license pocket.
2. The license plate lamp from the license pocket.
3. The bulb socket from the license plate lamp.
4. The bulb form the socket.

INSTALL OR CONNECT
1. The bulb to the socket.
2. The bulb socket to the license plate lamp.
3. The license plate lamp to the license pocket.
4. The screws to retain the license plate lamp to the license pocket.
