Underhood Lamp: Diagrams

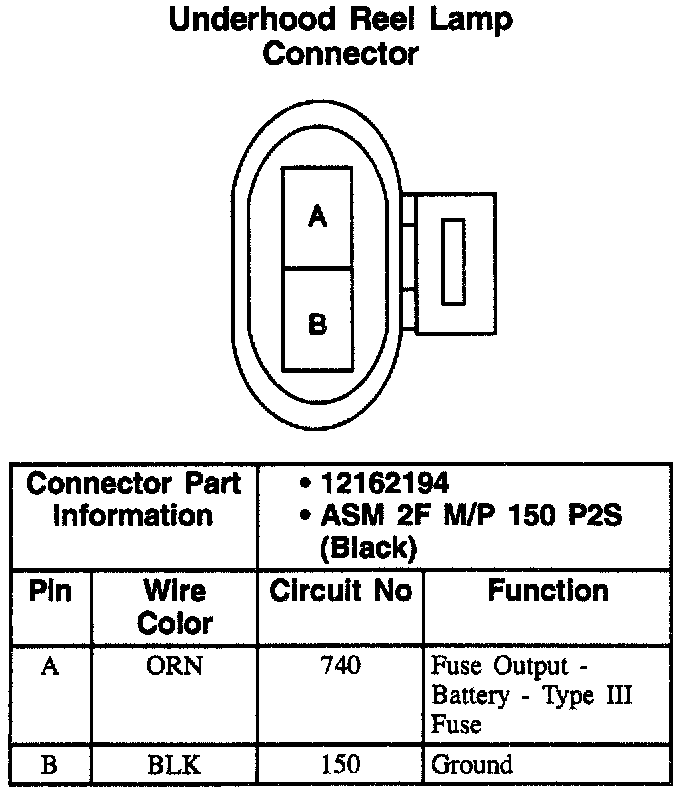

Underhood Reel Lamp Connector:

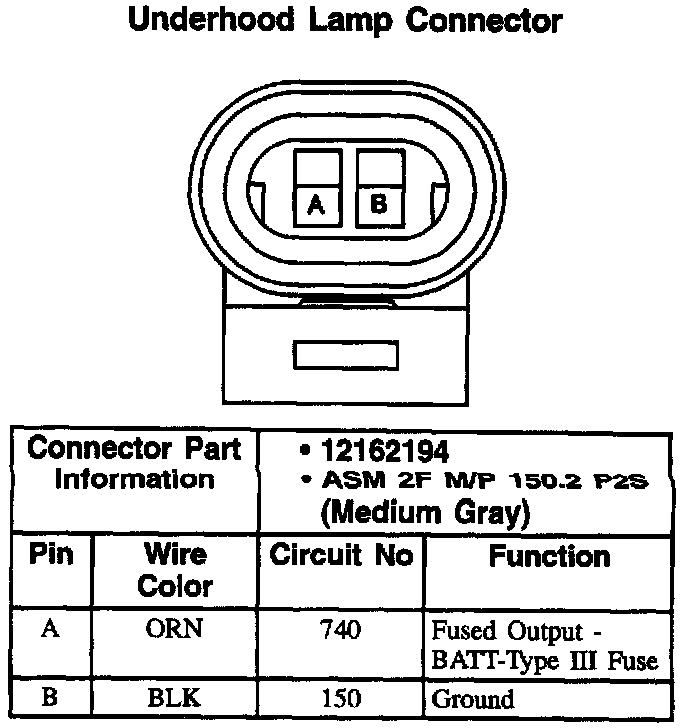

Underhood Lamp Connector:

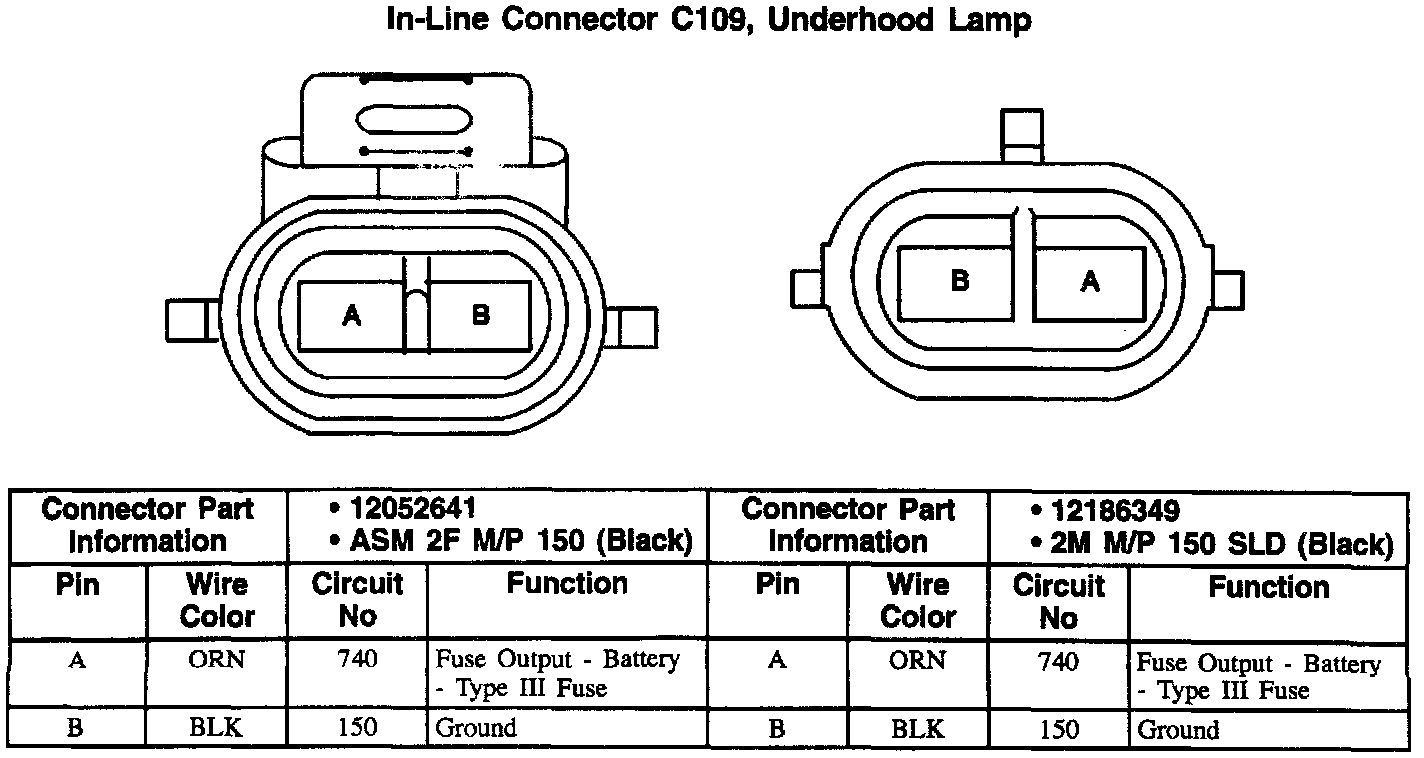

In-Line Connector C109, Underhood Lamp:
