S10/T10 Blazer 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Body and Frame
>>
Diagrams
>>
Body Harn to RH Rear Window Defogger Grid Pigtails
>>
W/ Liftgate
W/ Liftgate

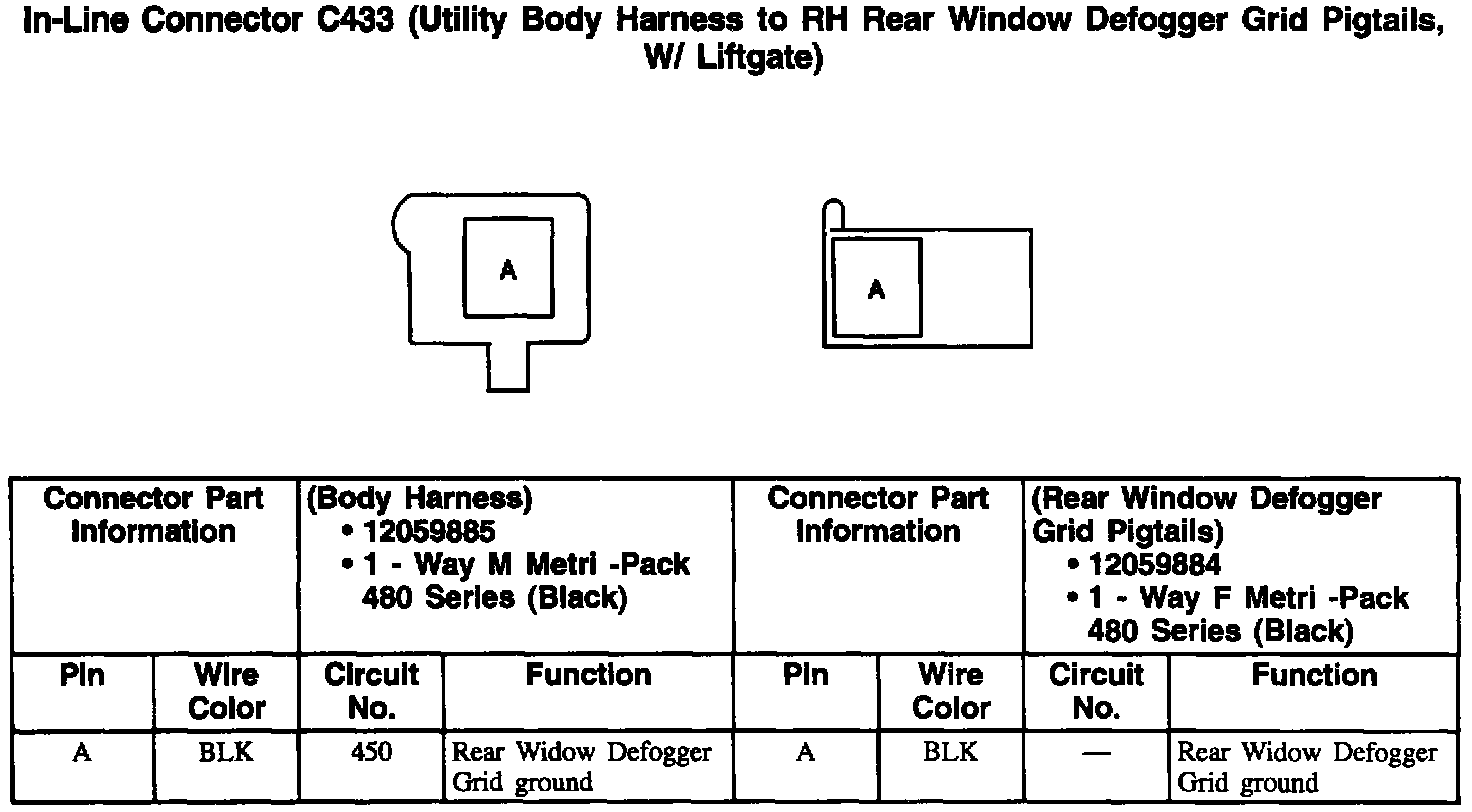

In-Line Connector: C433 (With Liftgate):
