Body Harness to Endgate Harness
Body Harness to Endgate Harness

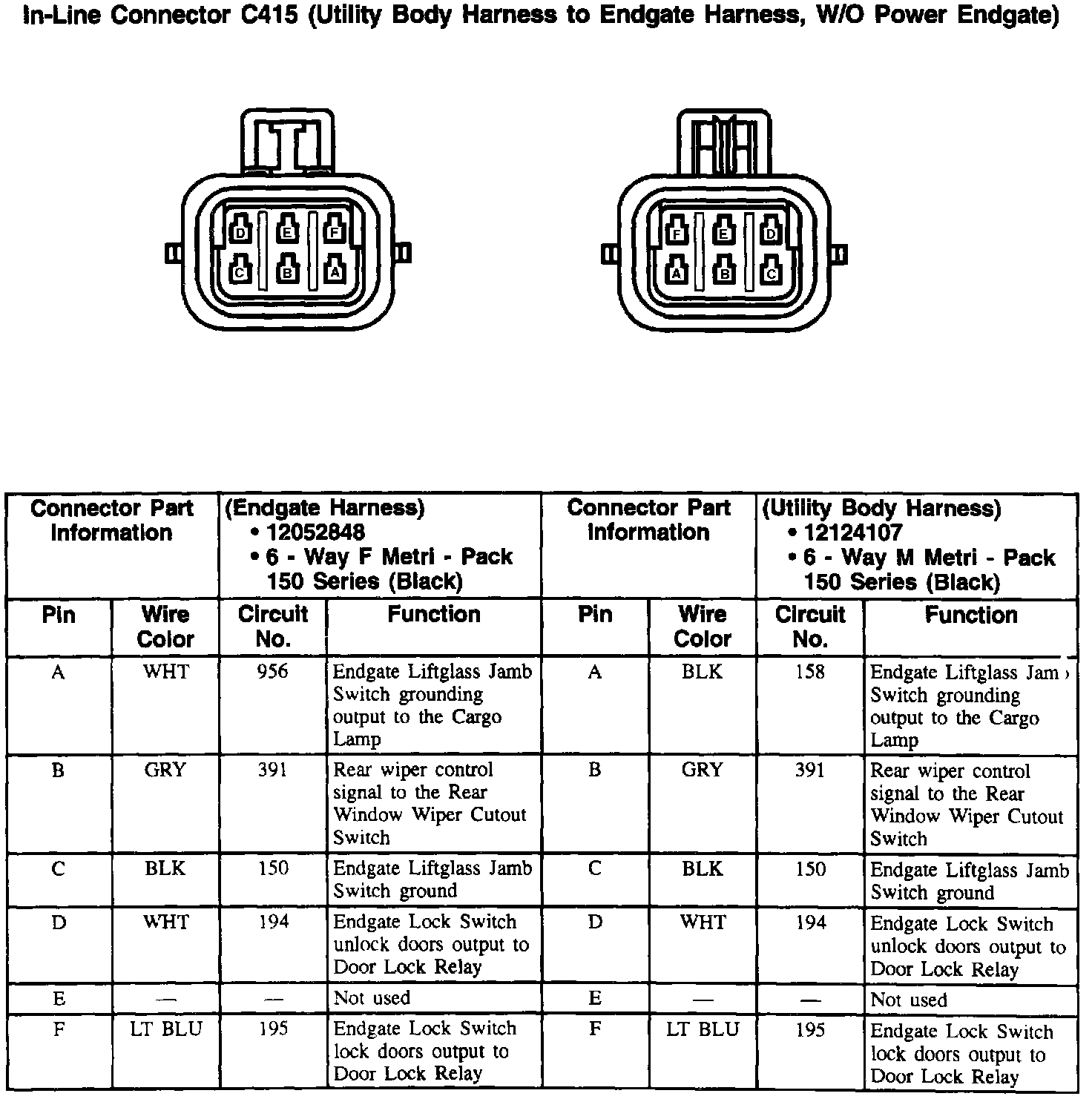

In-Line Connector: C415 (Body Harness To Endgate Harness):
In-Line Connector: C415 (Body Harness To Endgate/Liftgate Harness):
