Body Harness to Endgate/Liftgate Harness
Body Harness to Endgate/Liftgate Harness

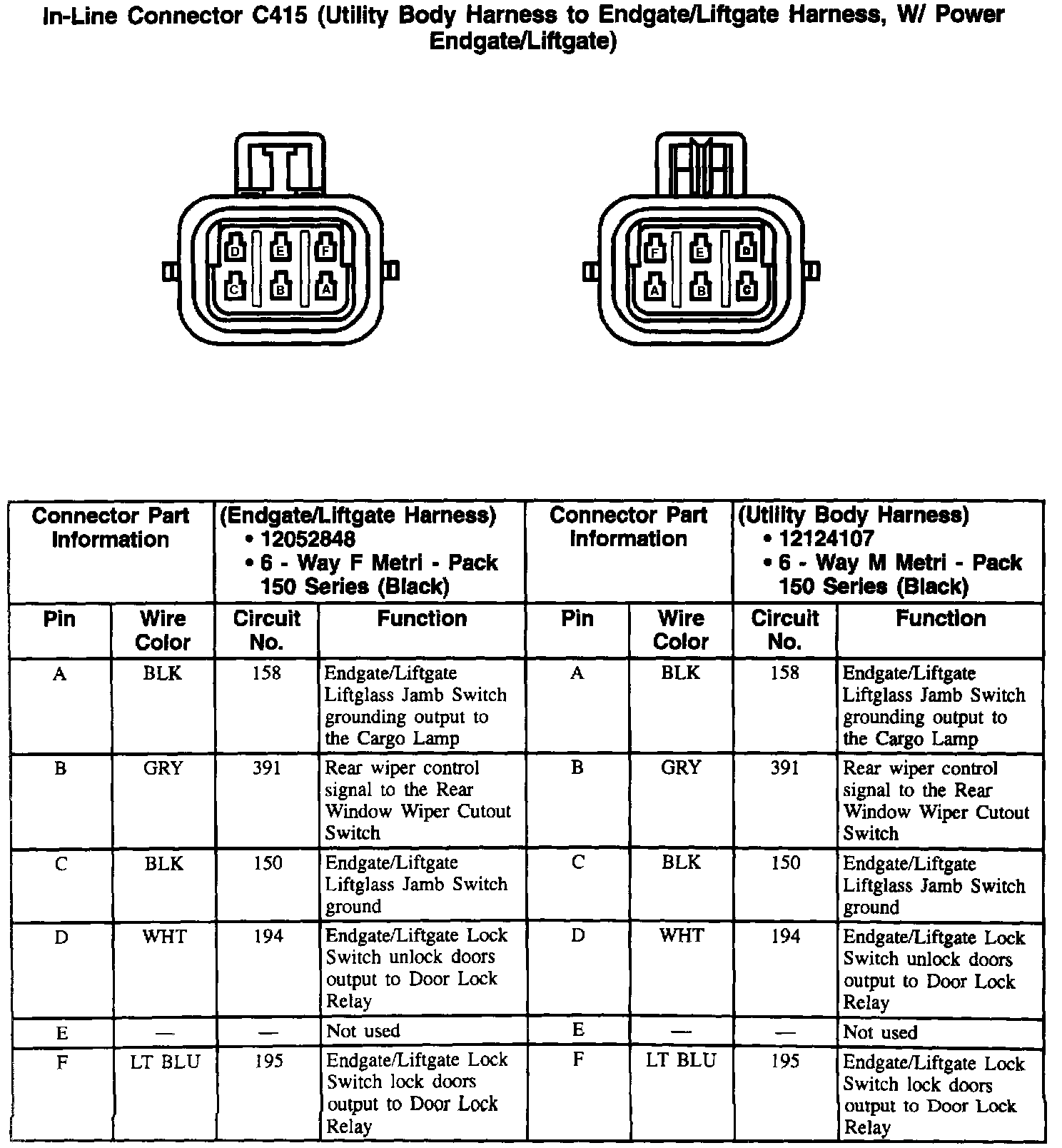

In-Line Connector: C415 (Body Harness To Endgate/Liftgate Harness):
