Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1997
>>
S10/T10 Blazer 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Body and Frame
>>
Diagrams
>>
Body Harness to LH Liftgate Harness
Body Harness to LH Liftgate Harness

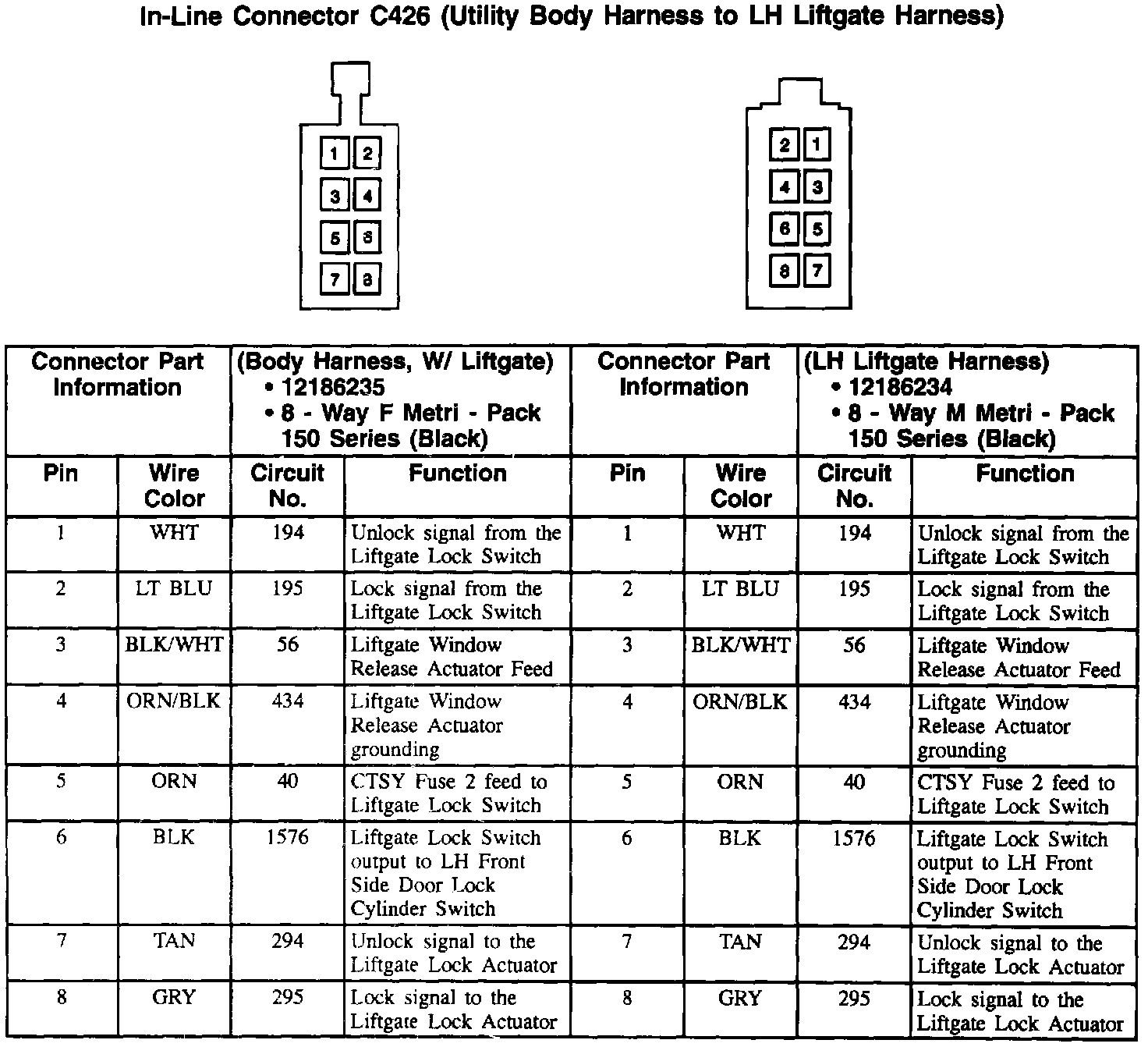

In-Line Connector: C426 (Body Harness To LH Liftgate Harness):
