Body Harness to Left Rear Side Door Harness (4-Door)
Body Harness to Left Rear Side Door Harness (4-Door)

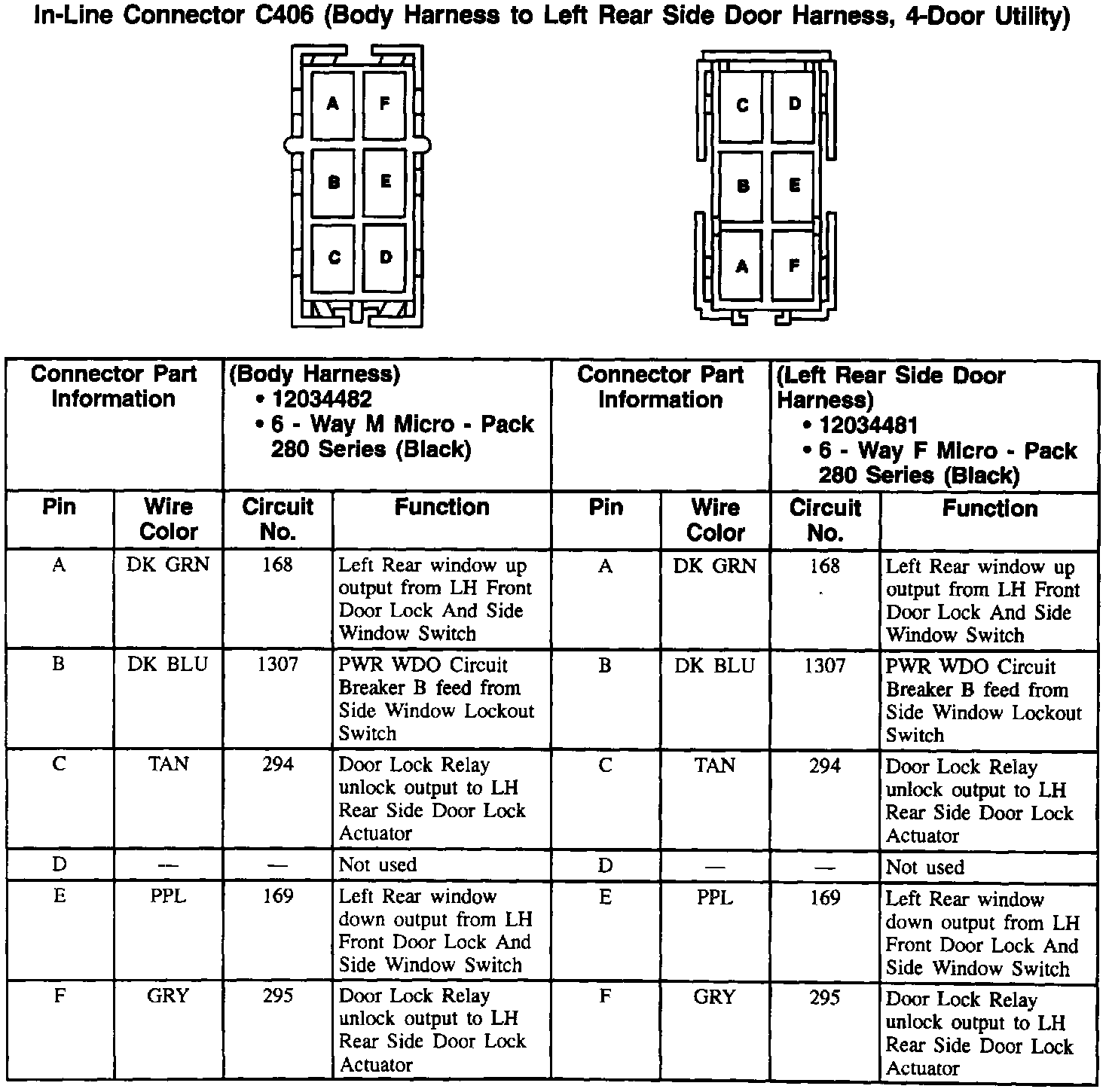

In-Line Connector: C406:
