Body Harness to RH Liftgate Harness
Body Harness to RH Liftgate Harness

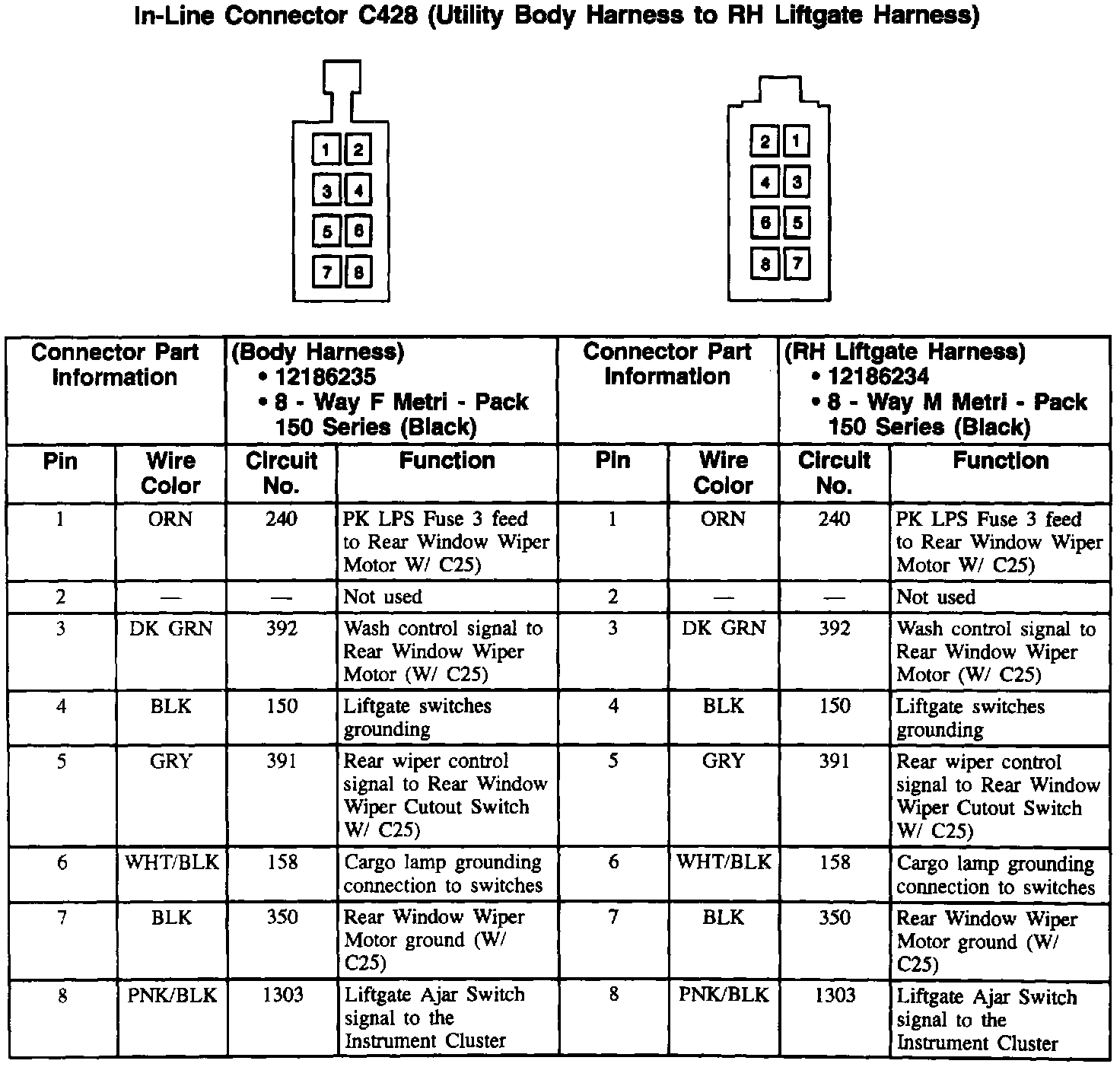

In-Line Connector: C428 (Body Harness To RH Liftgate Harness):
