Body Harness to Right Rear Side Door Harness (4-Door)
Body Harness to Right Rear Side Door Harness (4-Door)

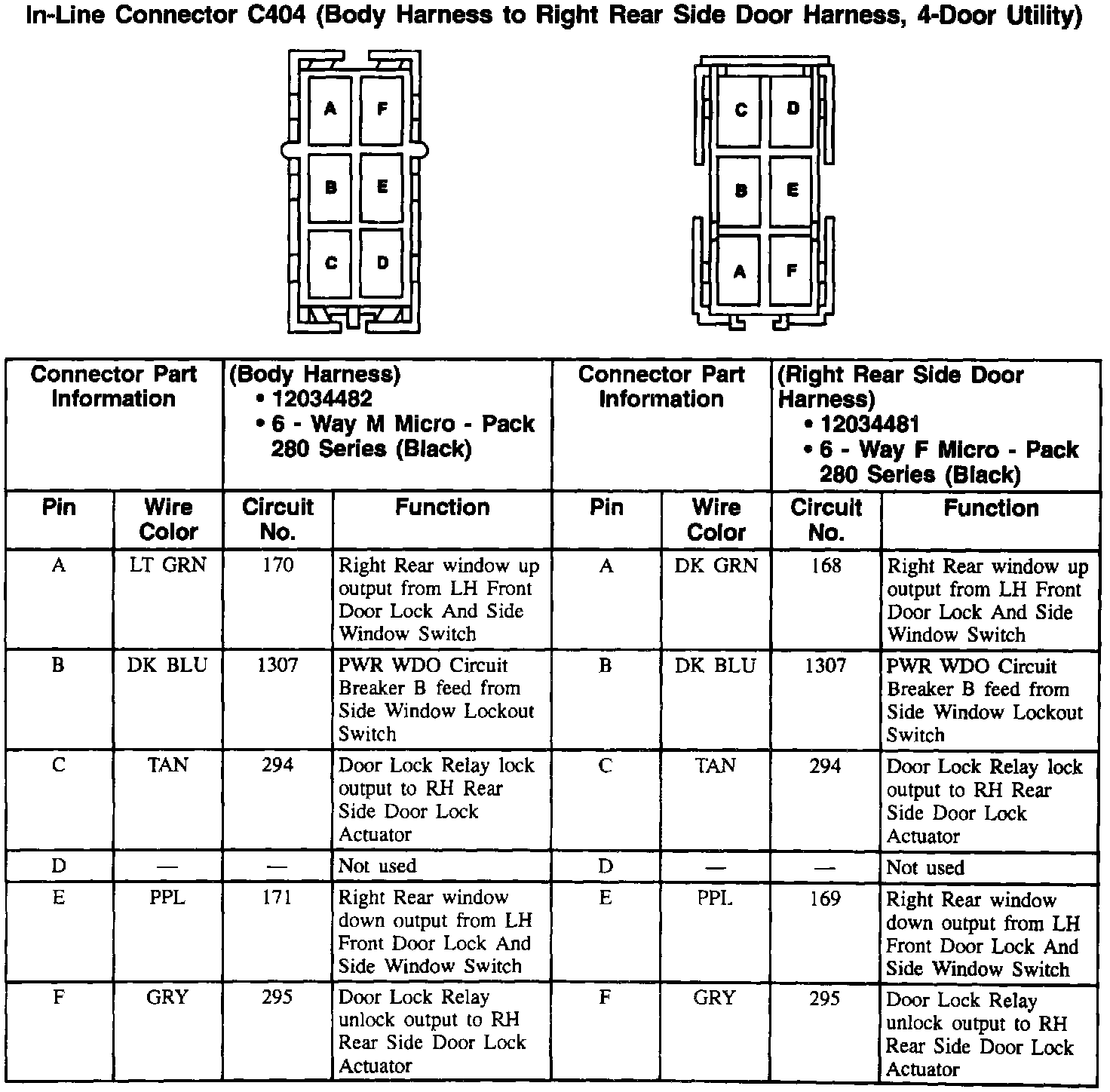

In-Line Connector: C404:
