Crossbody Harness to LH Front Side Door Harness
>>
With RKE
With RKE

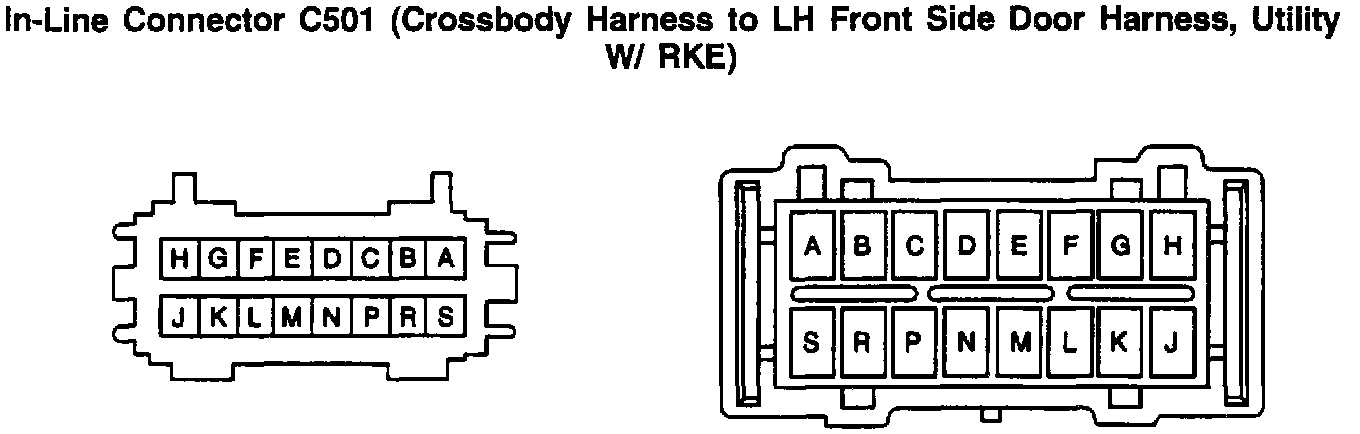

In-Line Connector: C501 (With RKE):

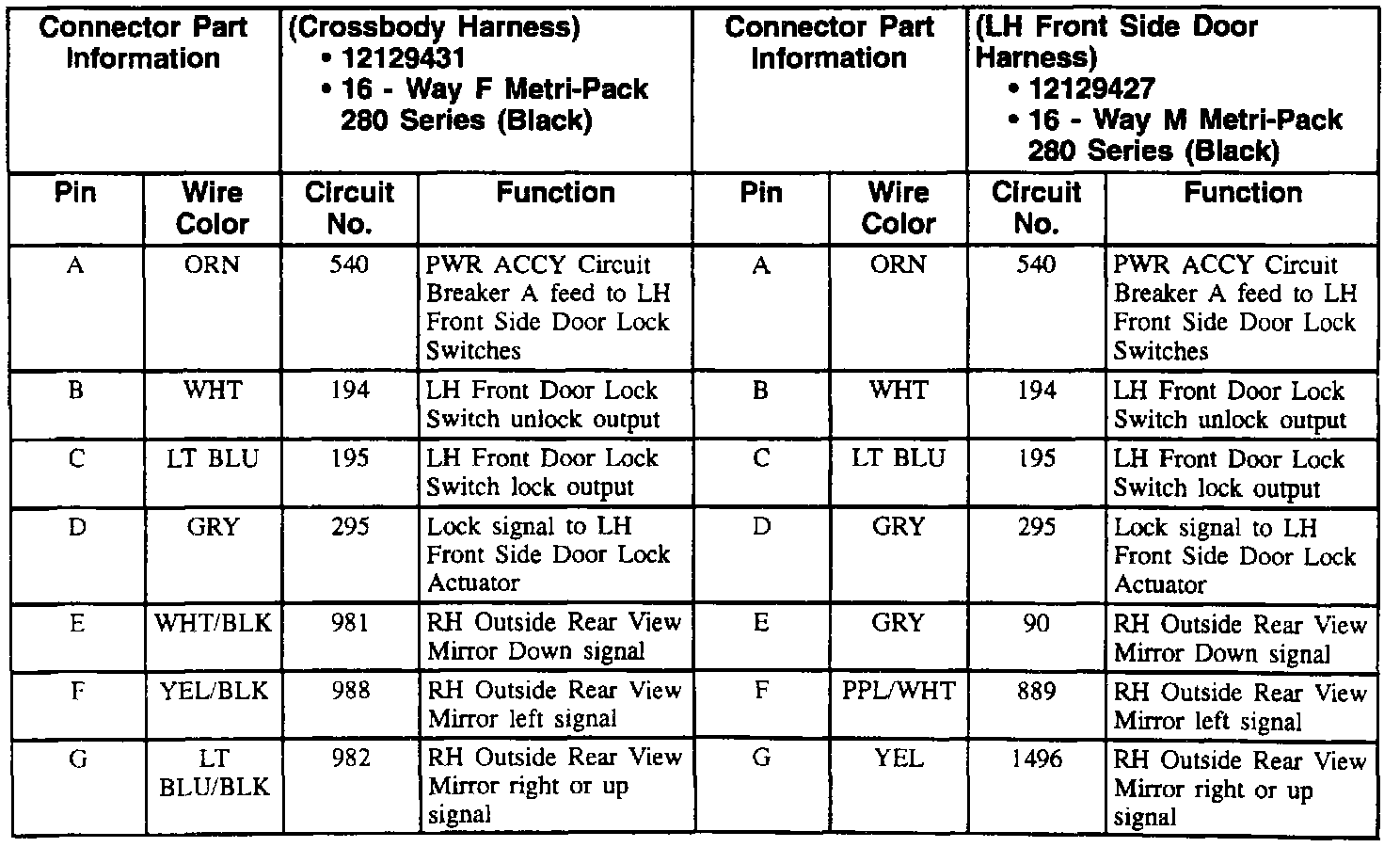

In-Line Connector: C501 (With RKE) (Part 1 Of 2):

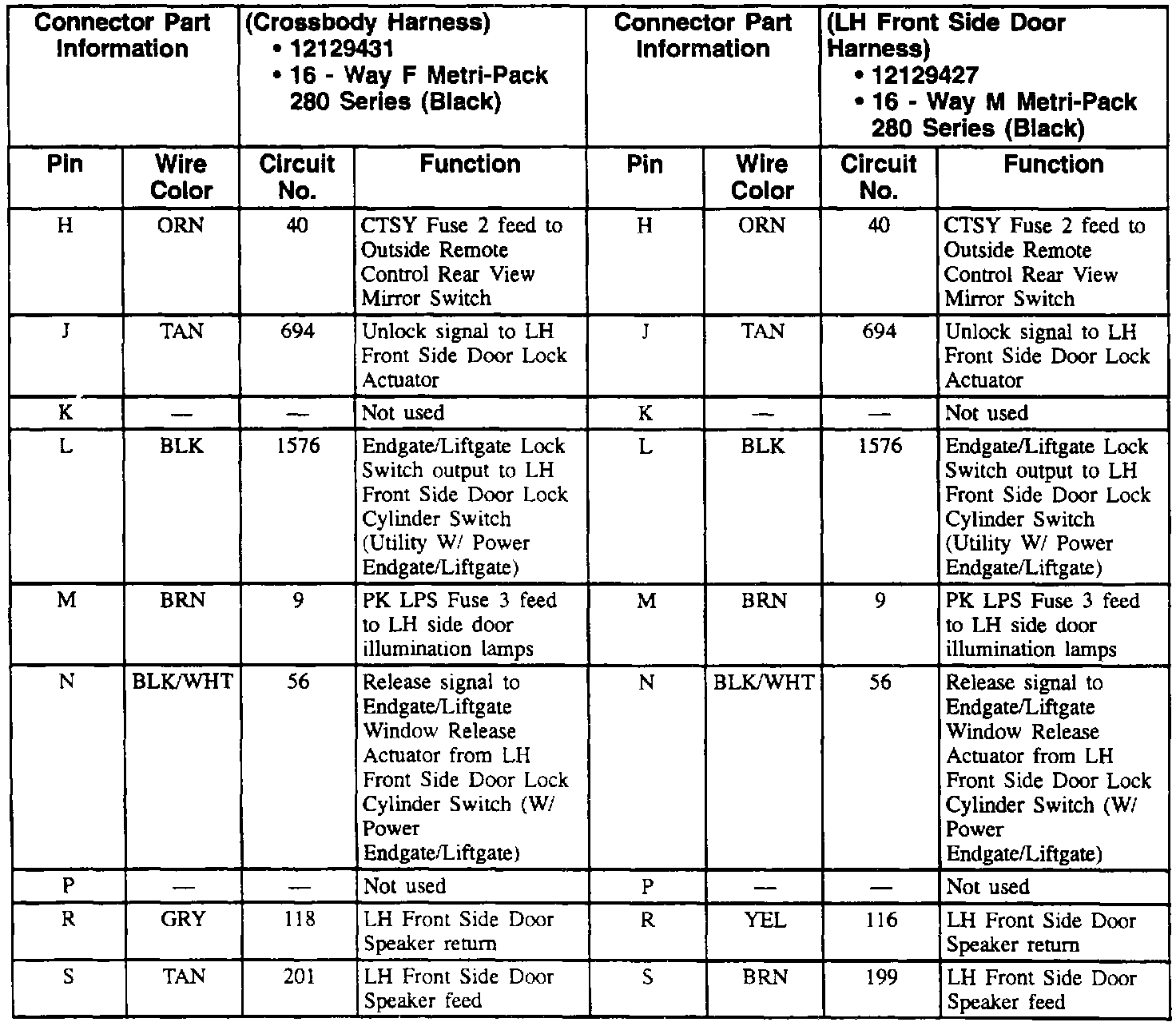

In-Line Connector: C501 (With RKE) (Part 2 Of 2):
