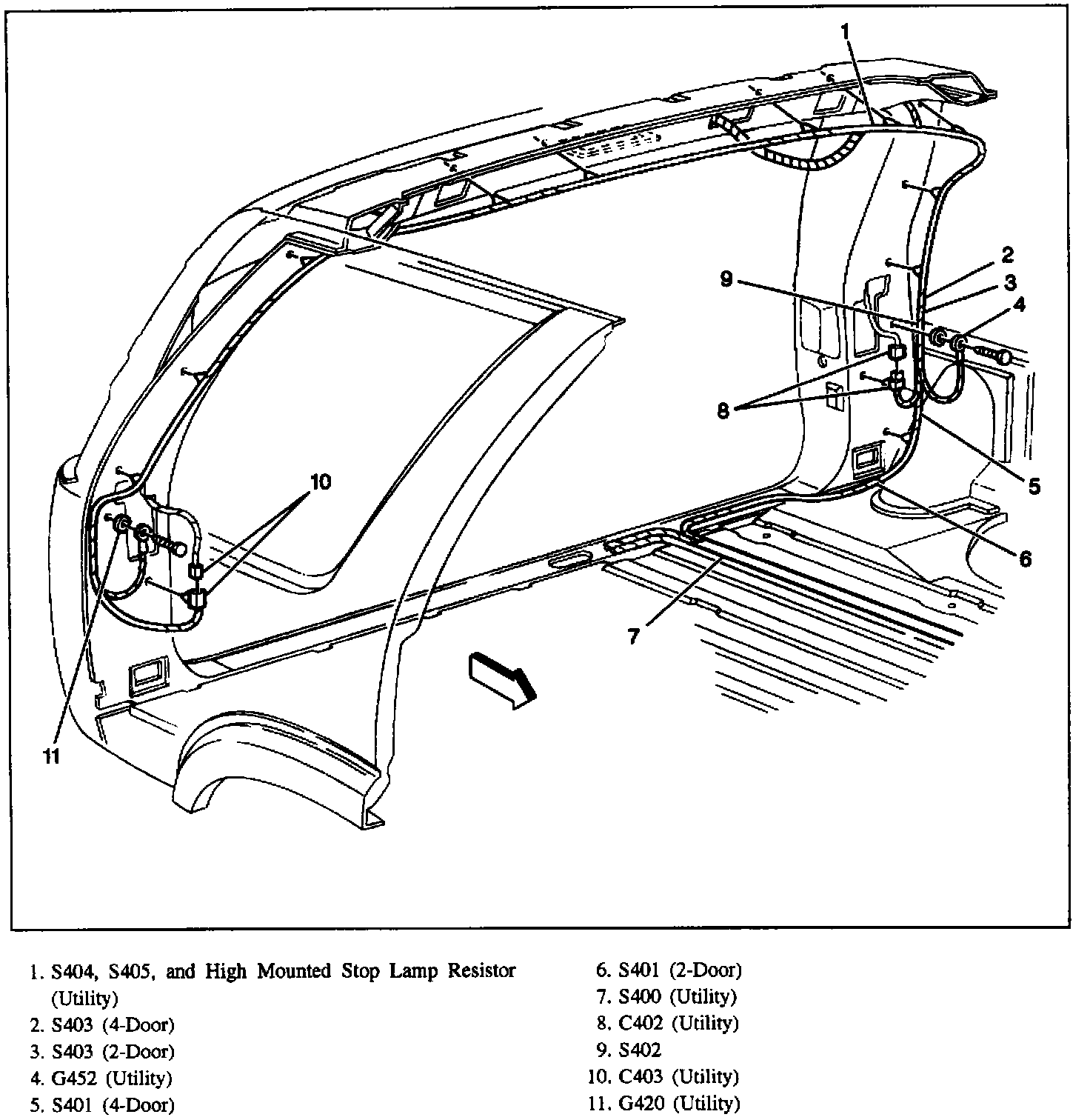

High Mounted Stop Lamp Resistor
High Mounted Stop Lamp Resistor
Utility Rear Body Wiring:
Body harness above endgate 10 cm from breakout to high mounted stop lamp
