TCC Brake and Cruise Control Release Switch
TCC Brake and Cruise Control Release Switch

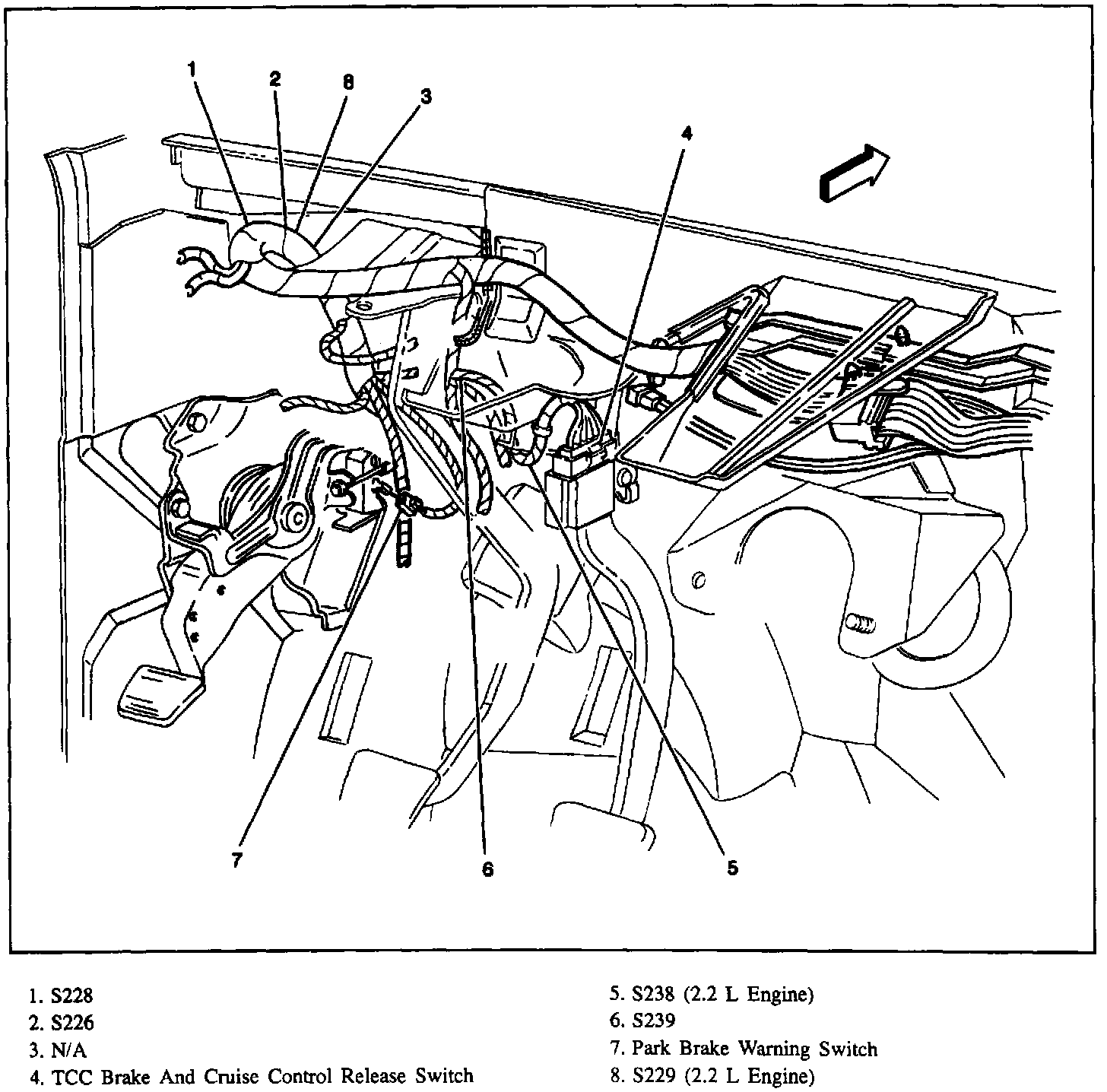

Front Of Dash Wiring (LH Side):

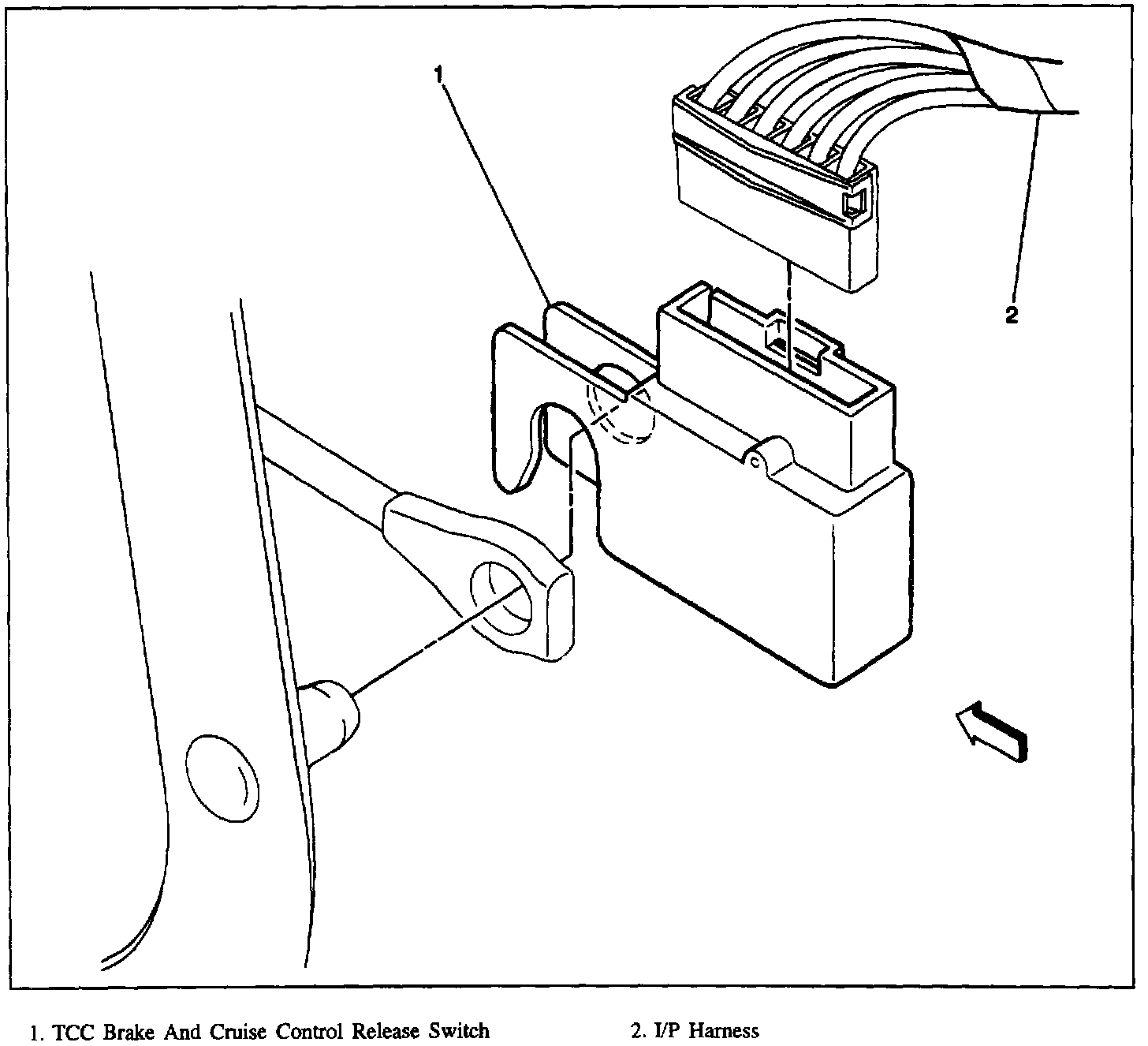

TCC Brake And Cruise Control Release Switch Wiring:
