Data Link Connector
>>
W/O Electric Shift 4WD
W/O Electric Shift 4WD

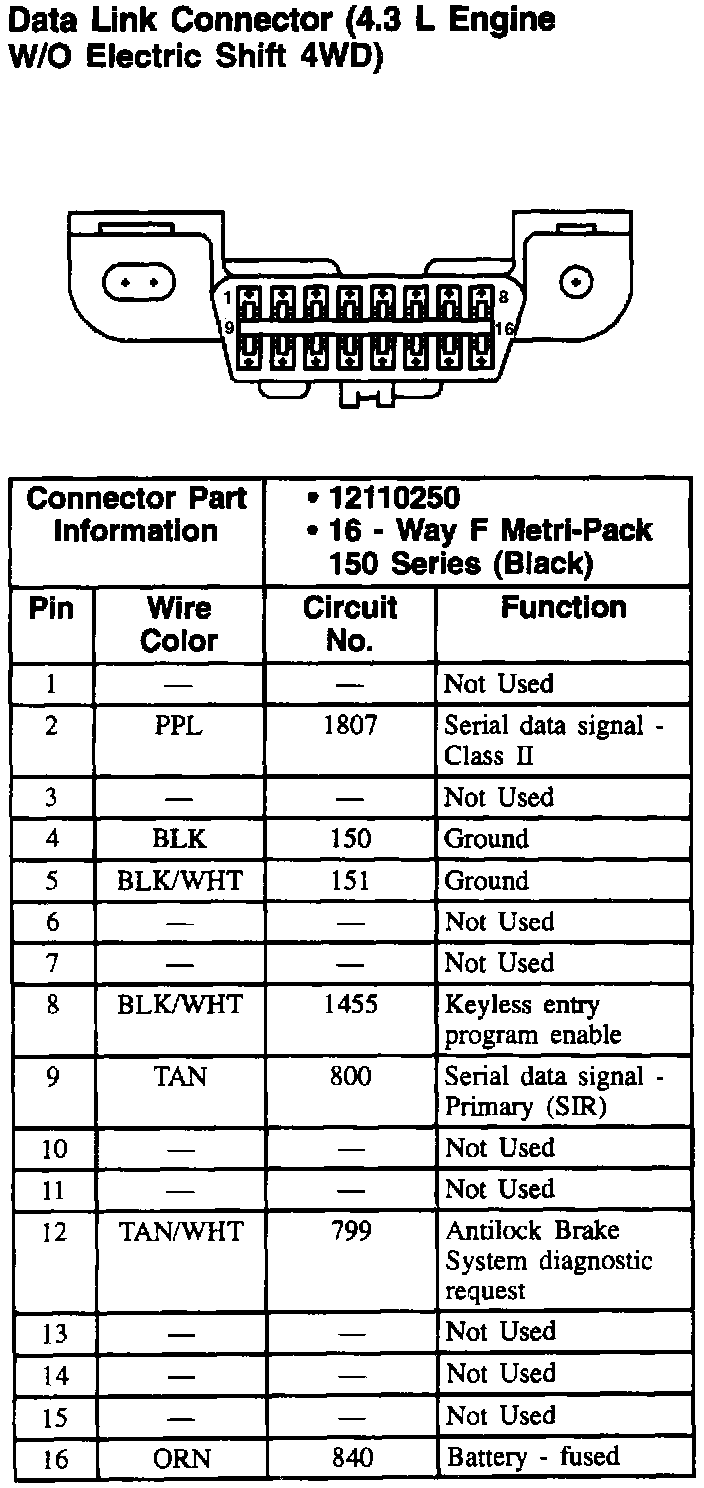

Data Link Connector (W/O Electric Shift 4WD):
