Fluid Pressure Sensor/Switch, A/T
>>
Automatic Trans Fluid Pressure Manual Valve Position SW
Automatic Trans Fluid Pressure Manual Valve Position SW

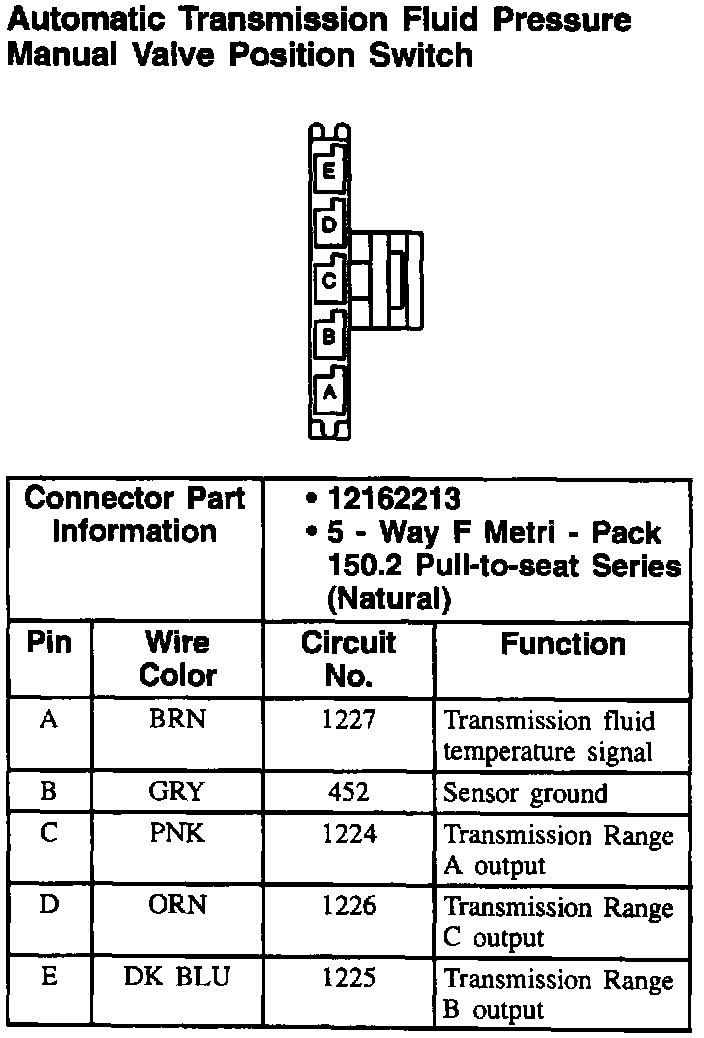

Automatic Transmission Fluid Pressure Manual Valve Position Switch:
