Home
>>
Chevy Truck
>>
1997
>>
S10/T10 Blazer 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
Transmission Shift Position Indicator Lamp
Transmission Shift Position Indicator Lamp

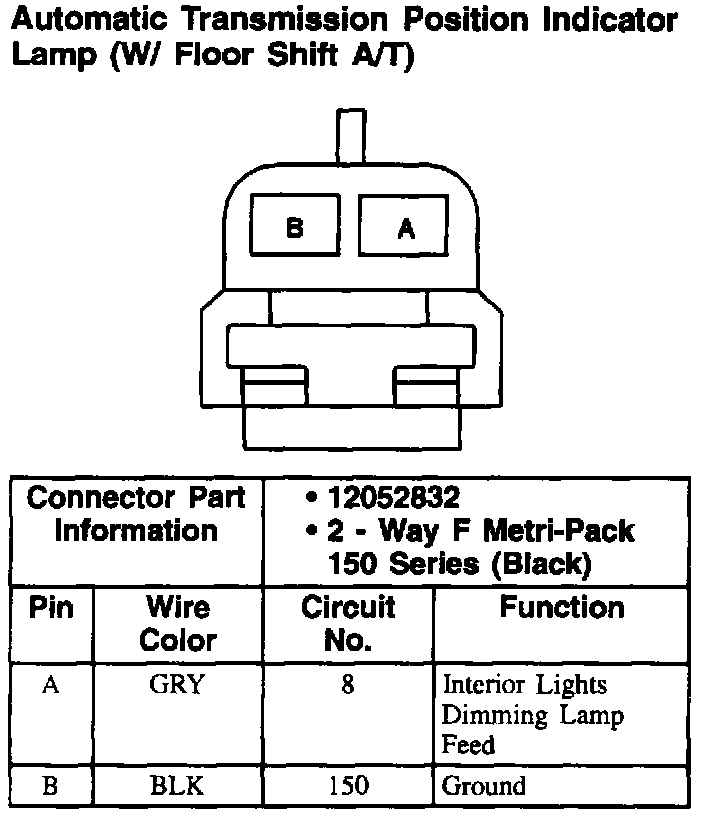

Automatic Transmission Position Indicator Lamp (W/ Floor Shift A/T):
