System Diagram

In-Line Connector: C222 (Extended Cab W/O Cargo Door):

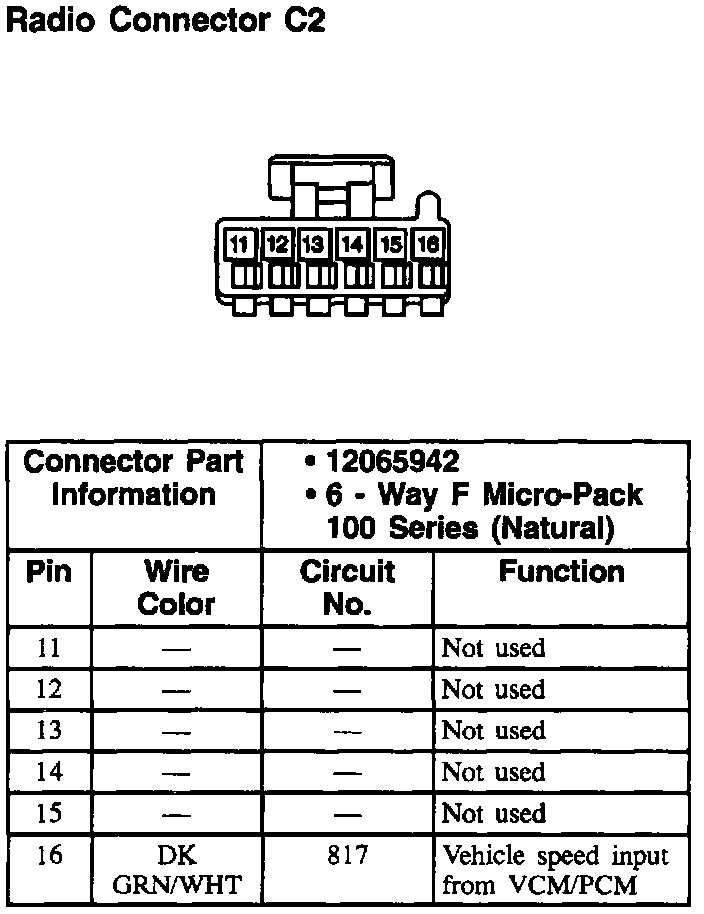

Radio Connector: C2:

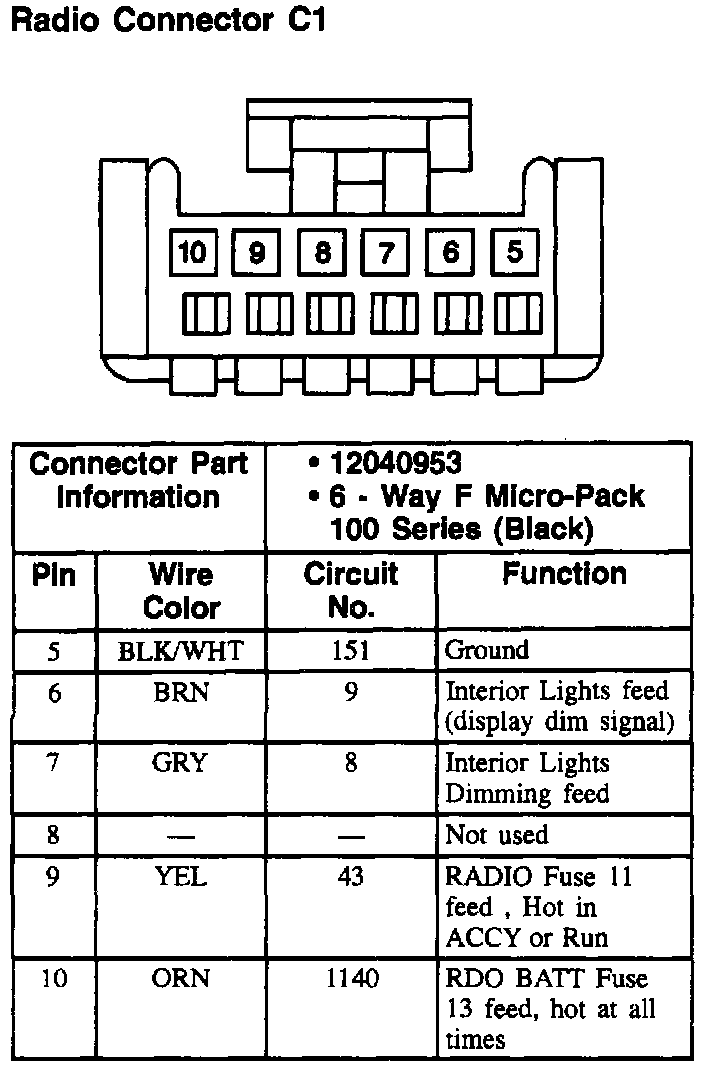

Radio Connector: C1:

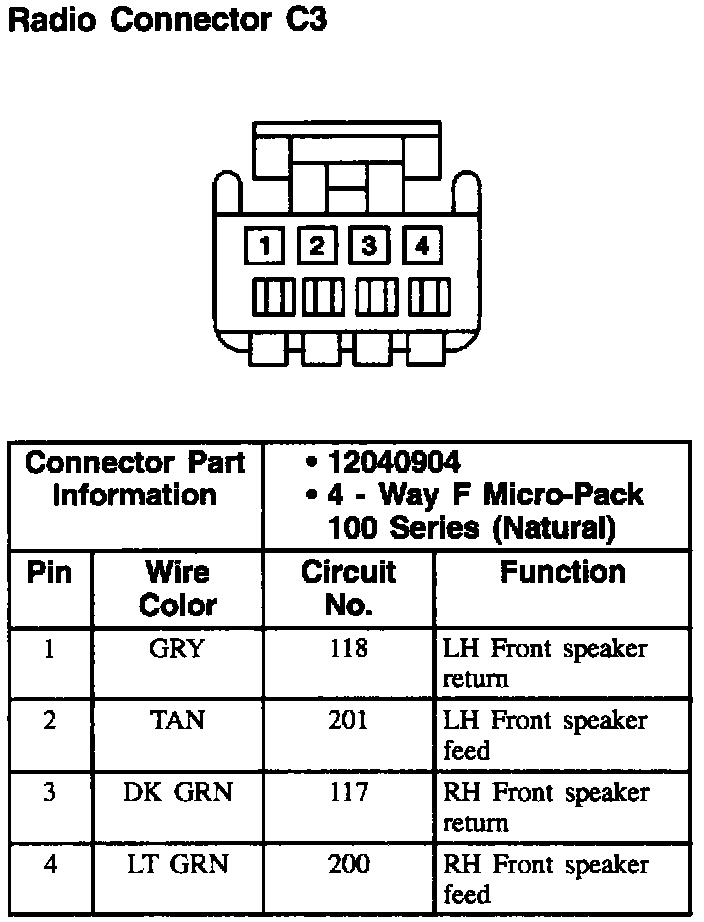

Radio Connector: C3:

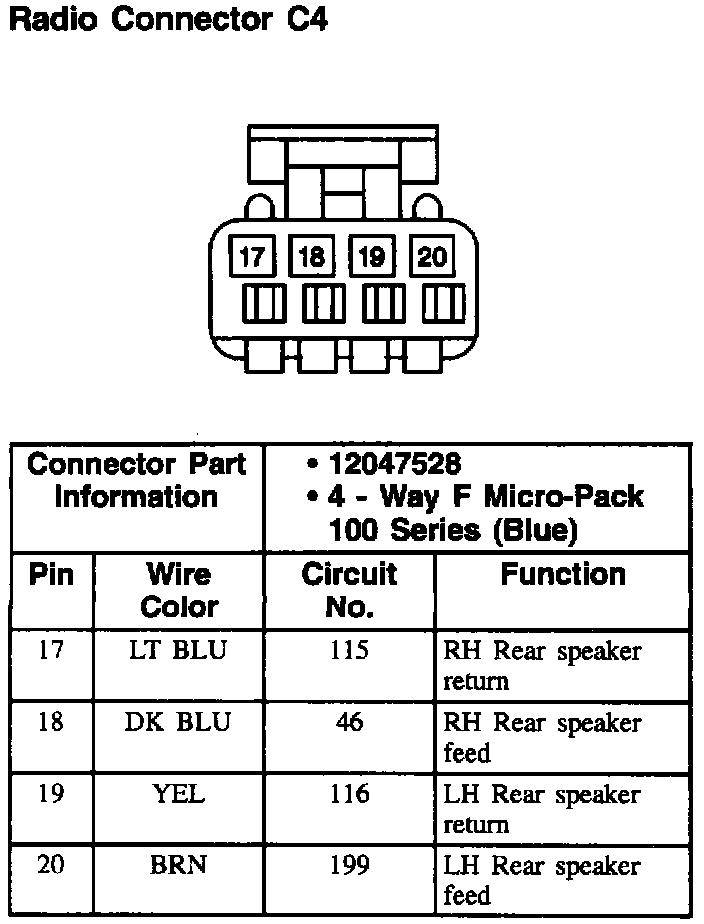

Radio Connector: C4:
