Home >> Chevy Truck >> 1997 >> S10/T10 Blazer 4WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starter Relay >> W/M/T

W/M/T

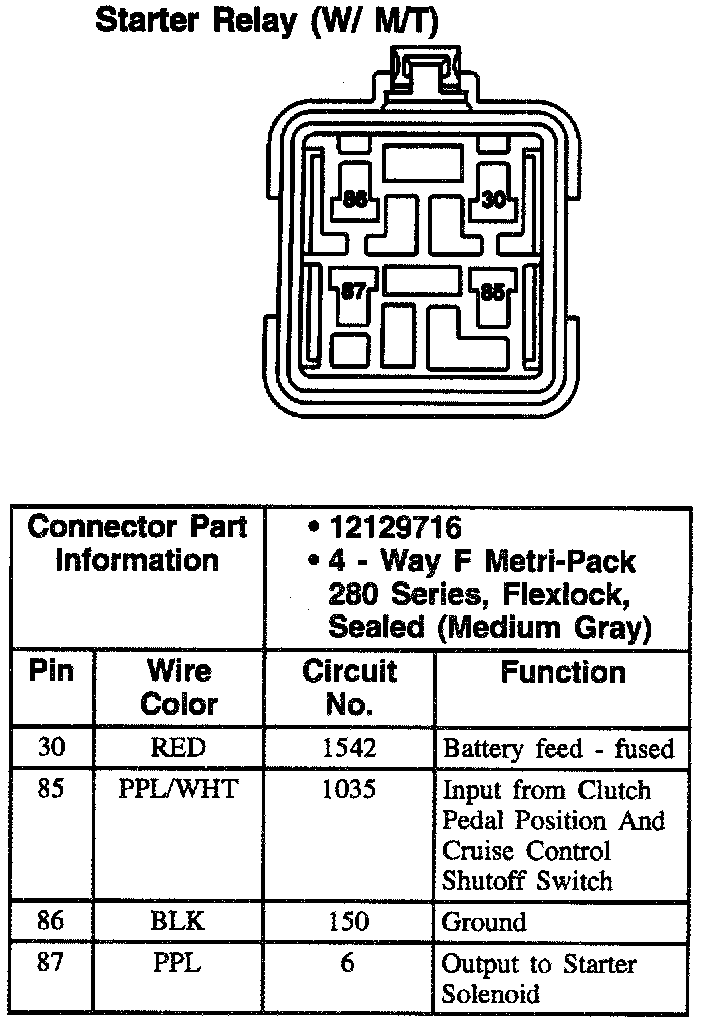

Starter Relay:
