Door Lock Actuator, LH Front Side, C1, C2, C3
Door Lock Actuator, LH Front Side, C1, C2, C3

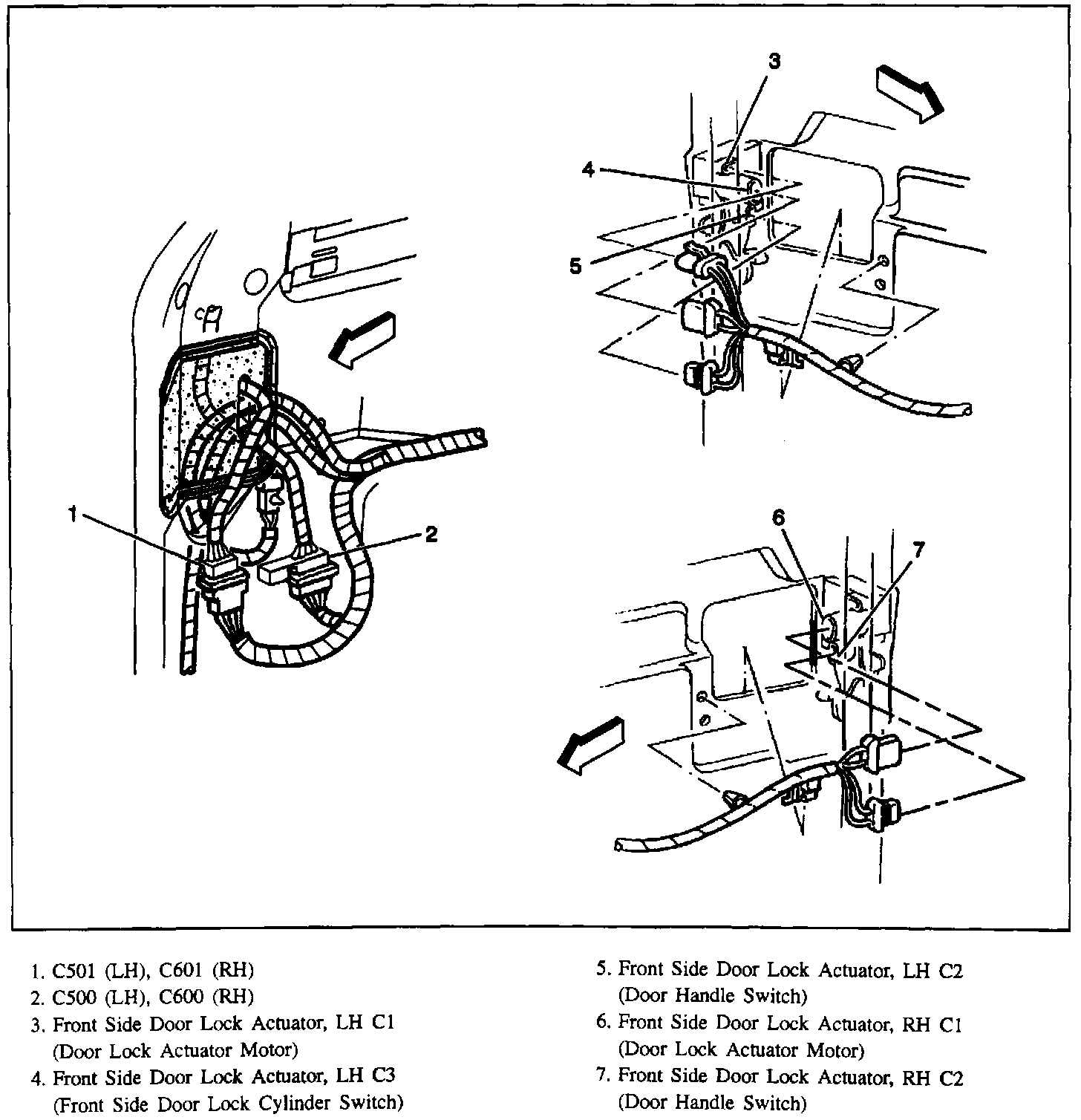

Front Side Door Wiring:
