S10/T10 Blazer 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Doors, Hood and Trunk
>>

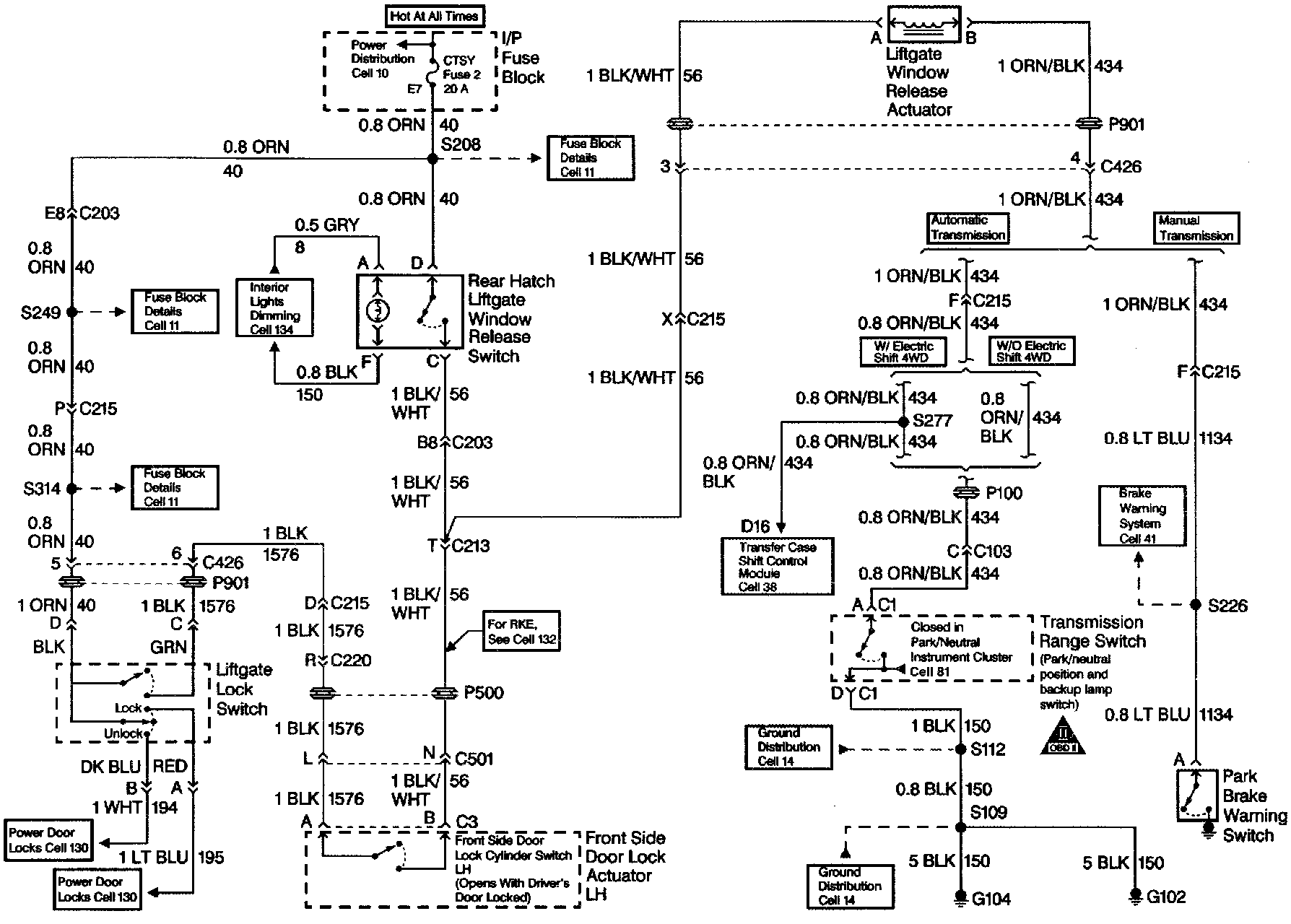

Liftgate Window Release (W/O Remote Keyless Entry)
Liftgate Window Release (W/O Remote Keyless Entry)
Liftgate Window Release (W/O Remote Keyless Entry):
