Connector Views

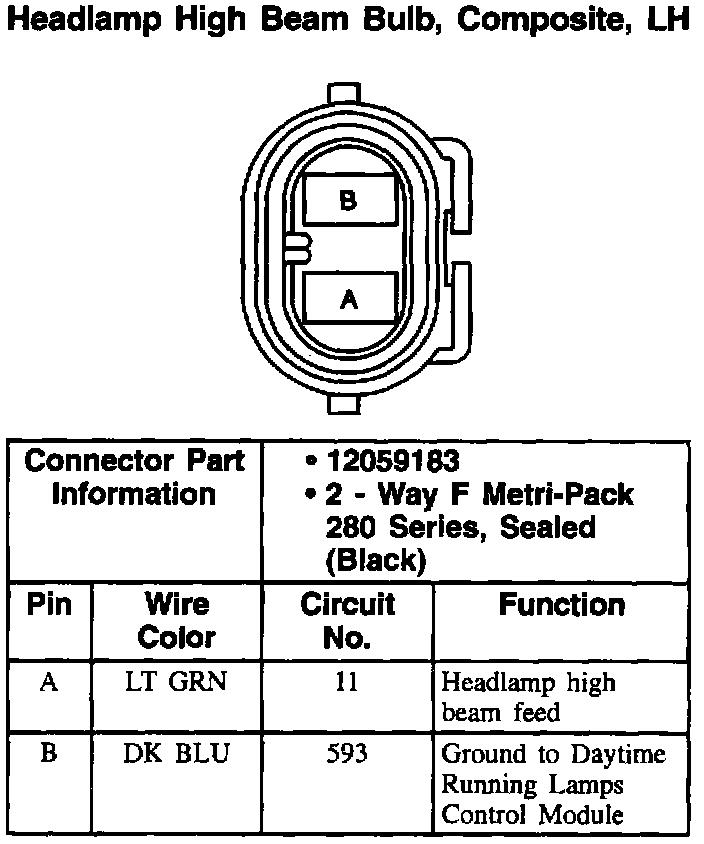

Headlamp High Beam Bulb, Composite, LH:

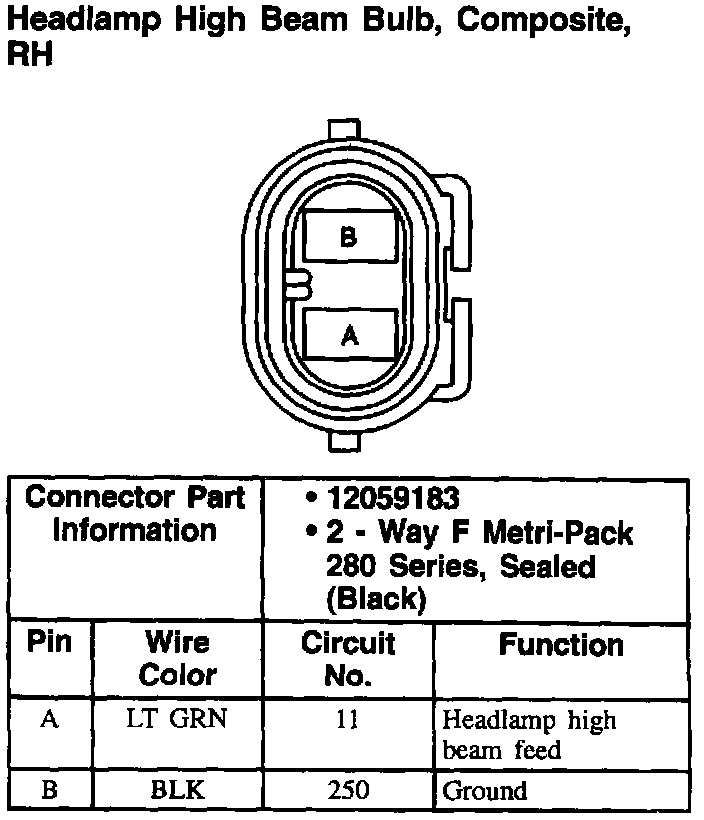

Headlamp High Beam Bulb, Composite, RH:

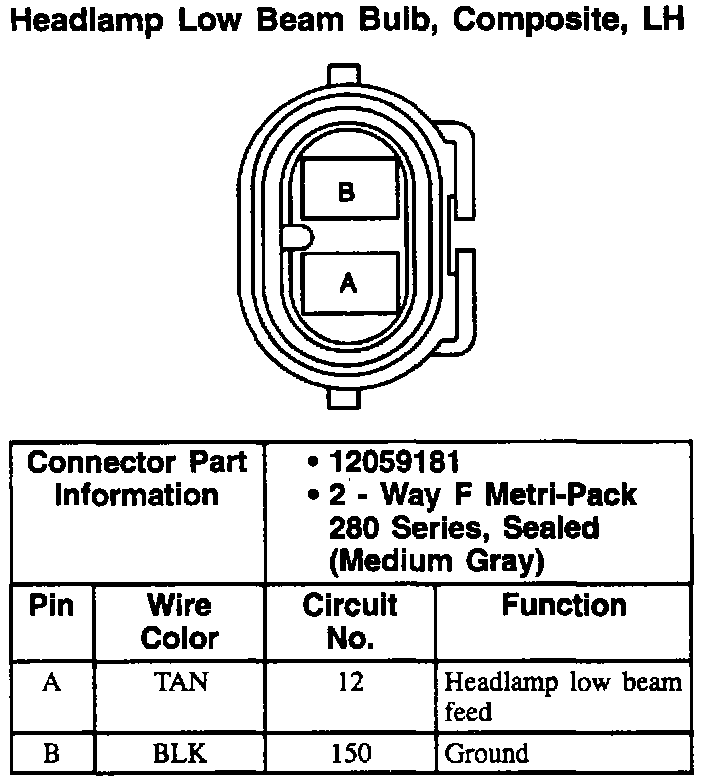

Headlamp Low Beam Bulb, Composite, LH:



Headlamp Sealed Beam Bulb, LH:

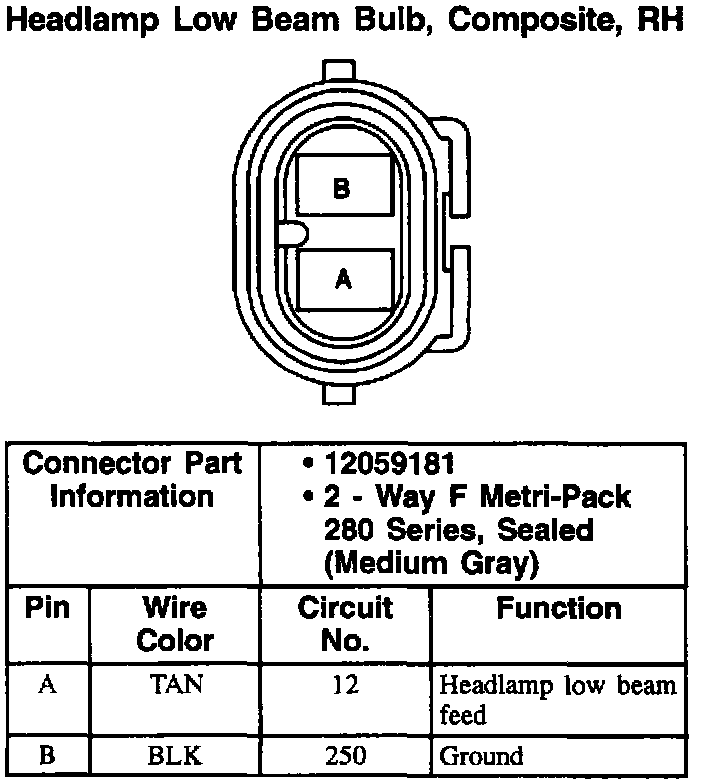

Headlamp Low Beam Bulb, Composite, RH:

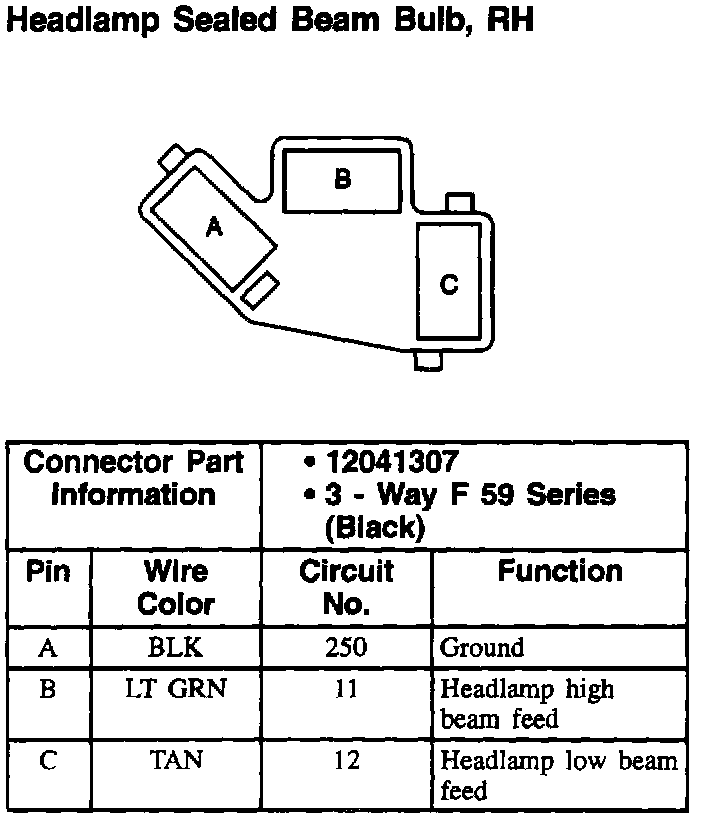

Headlamp Sealed Beam Bulb, RH:
