Battery Removal

Battery: Removal Procedure:

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.
2. Disconnect the positive battery cable.

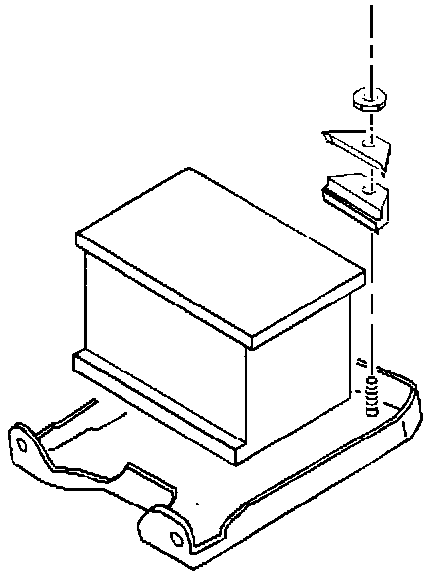

3. Remove the following parts:
3.1. The retainer nut
3.2. The retainer washer
3.3. The retainer
3.4. The battery
4. Inspect the following items for physical damage or corrosion:
- The battery
- The battery cables
- The connectors

Battery: Installation Procedure:

INSTALLATION PROCEDURE

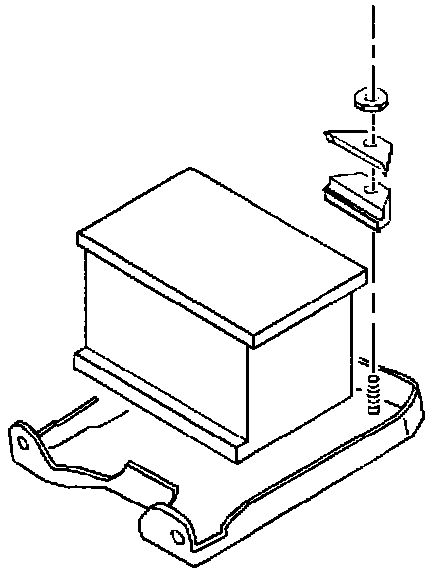

1. Install the following parts:
1.1. The battery onto a cleaned battery tray
1.2. The retainer
1.3. The retainer washer
1.4. The retainer nut
Tighten
Tighten the retainer nut to 17 N.m (13 lb ft).
2. Connect the positive battery cable.
3. Connect the negative battery cable.
Tighten
Tighten the battery terminal bolts to 15 N.m (11 lb ft).
