Home >> Chevy Truck >> 1997 >> S10/T10 Blazer 4WD V6-4.3L VIN W >> Repair and Diagnosis >> Starting and Charging >> Diagrams >> Electrical Diagrams >> Floor Shift A/T BTSI

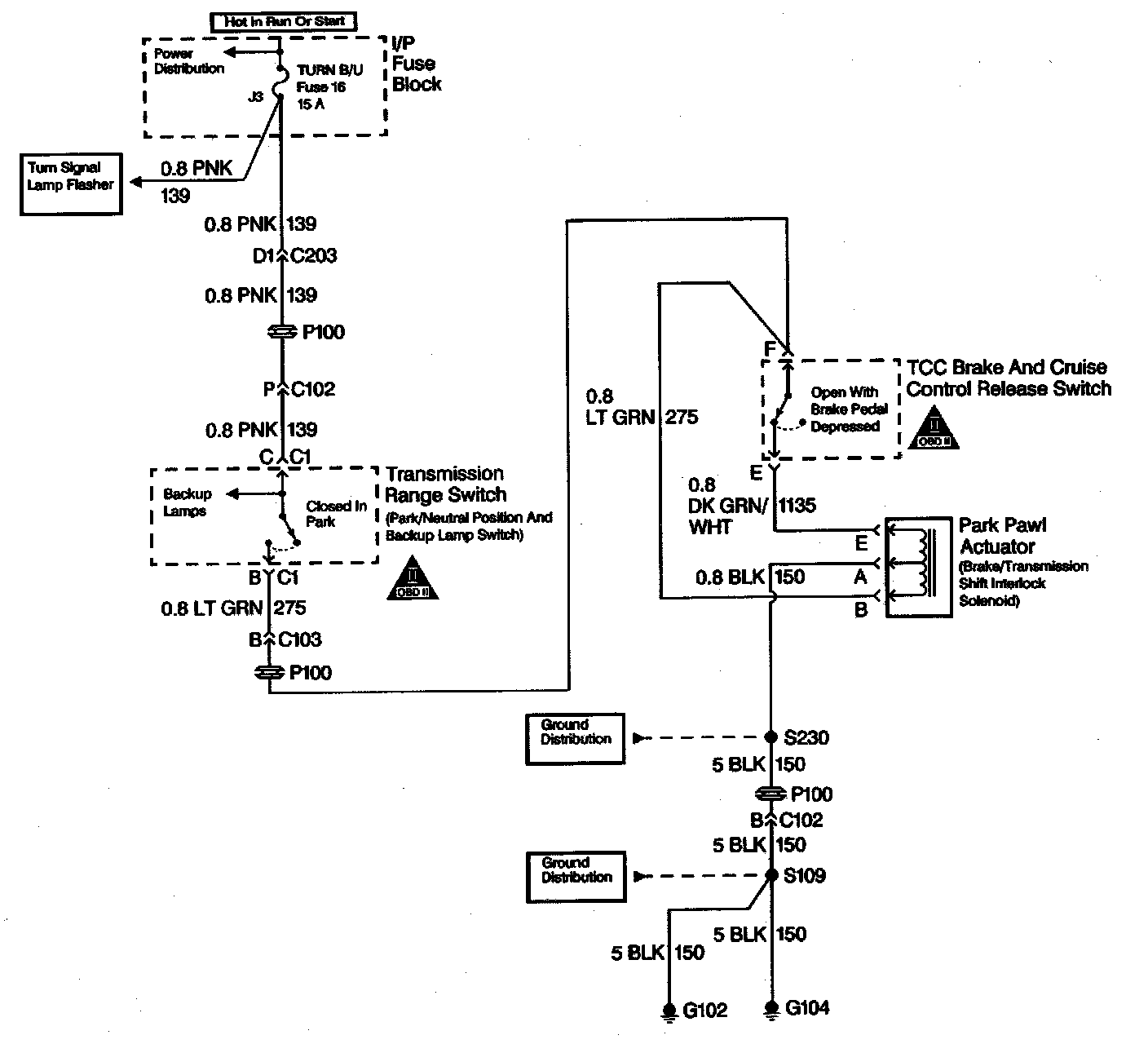

Floor Shift A/T BTSI

FLOOR SHIFT
