Connector Views

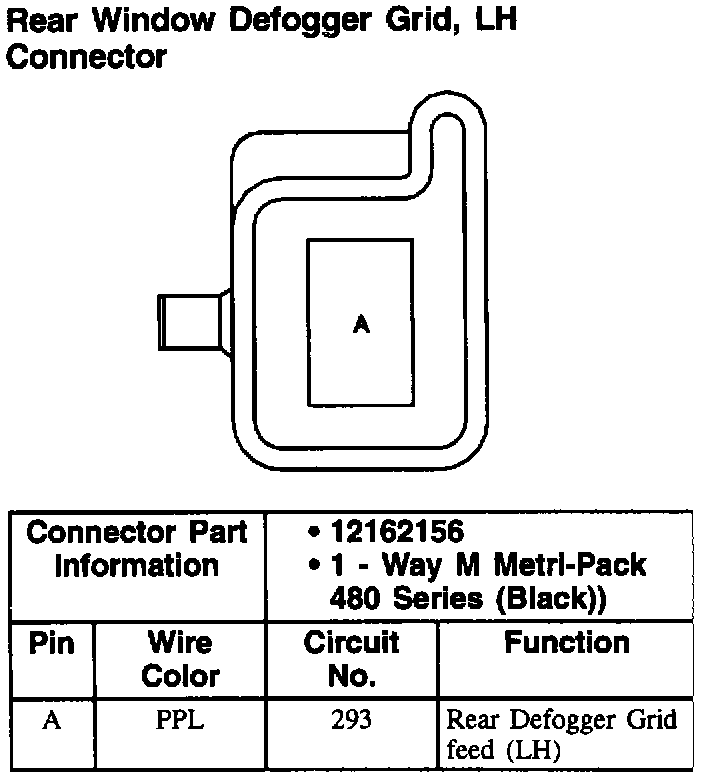

Rear Window Defogger Grid, LH Connector:

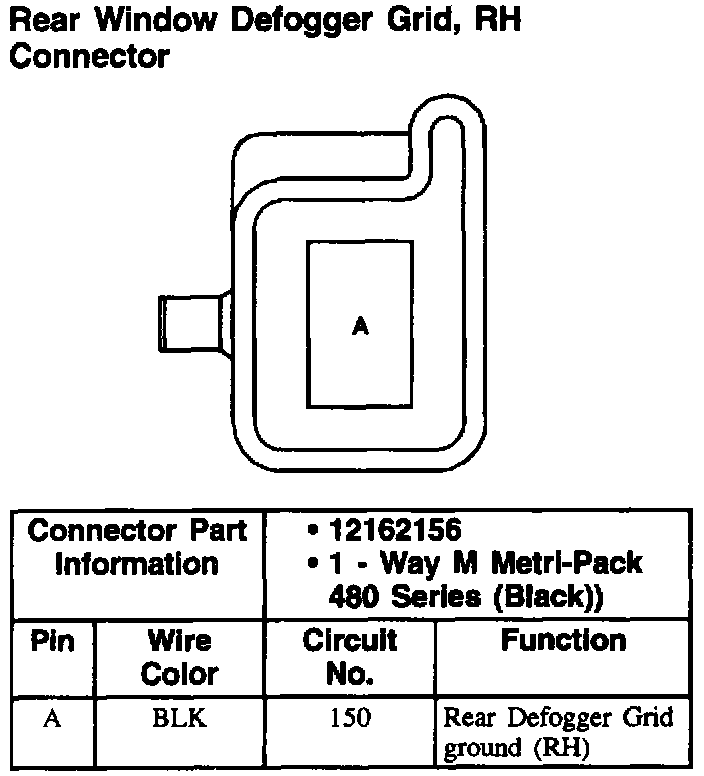

Rear Window Defogger Grid, RH Connector:

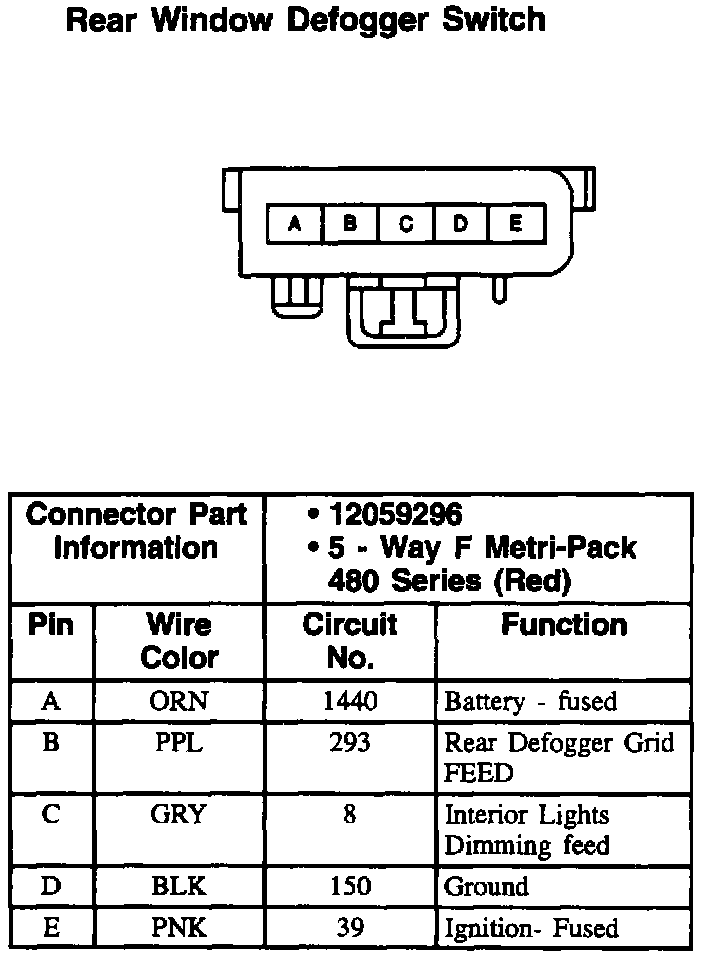

Rear Window Defogger Switch:

In-Line Connector: C432:

In-Line Connector: C433 (With Endgate):

In-Line Connector: C433 (With Liftgate):
