Air Door Actuator / Motor, HVAC
>>
Auxiliary Temperature Valve Actuator
Auxiliary Temperature Valve Actuator

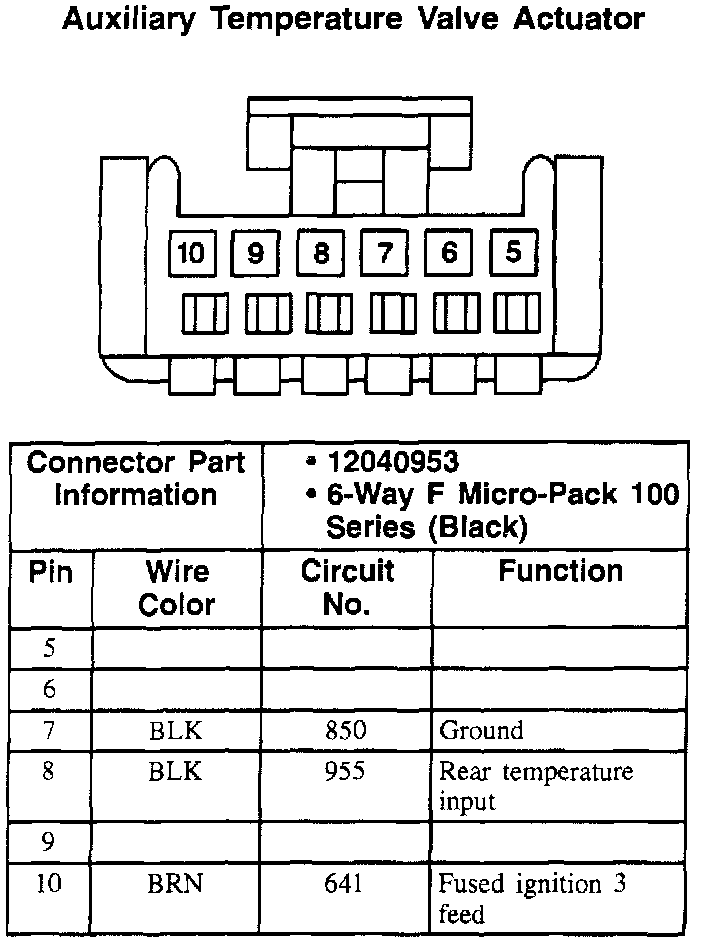

Auxiliary Temperature Valve Actuator:
