Electronic Brake Control Module

EBCM/EBTCM 24-Way F Micro-Pack 100 Series Lt Gry Connector C1 End View:

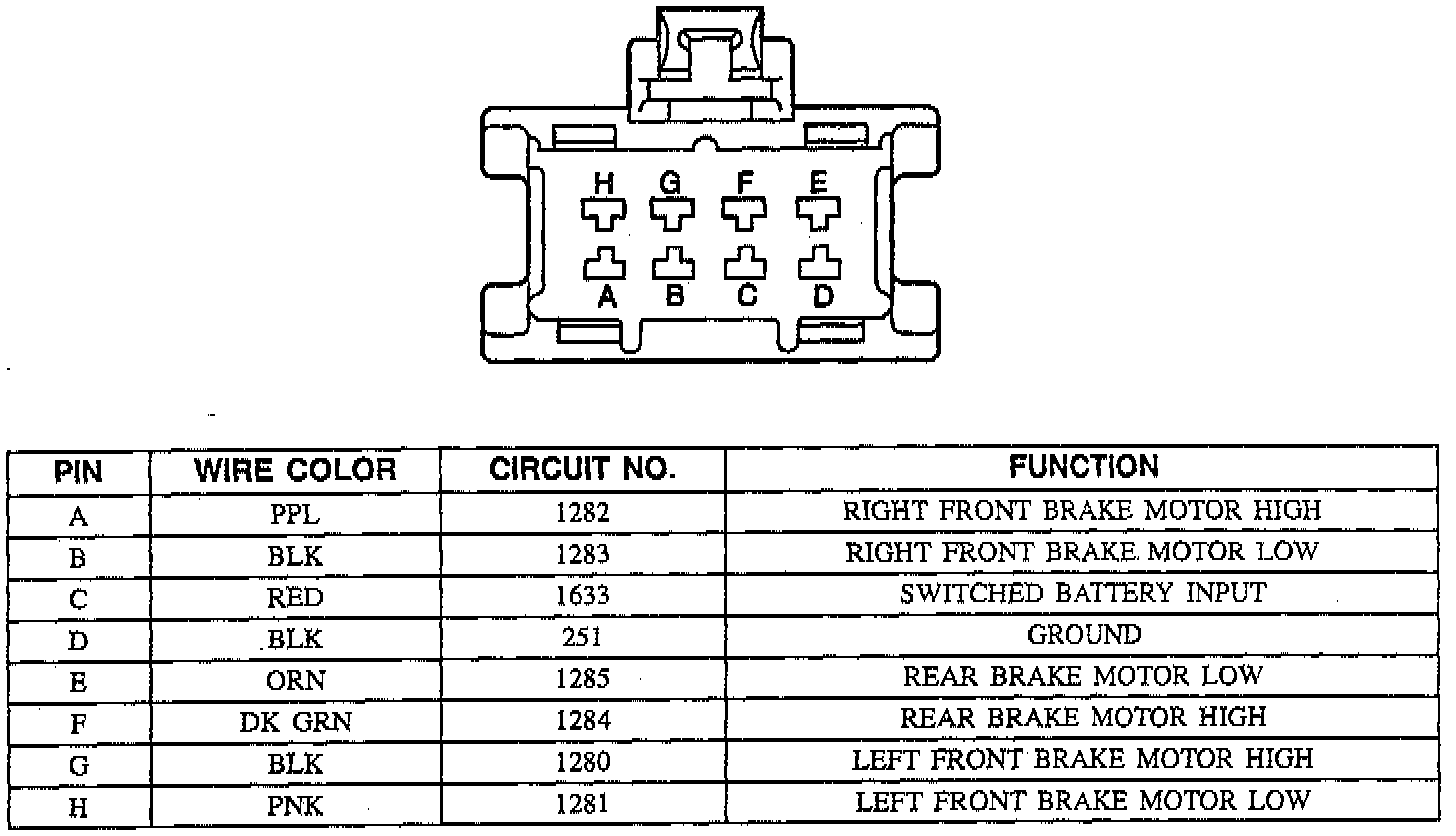

EBCM/EBTCM 8-Way F Metri-Pack 280 Series Lt Gry Connector C2 End View:
