Heating and Air Conditioning
Heating and Air Conditioning

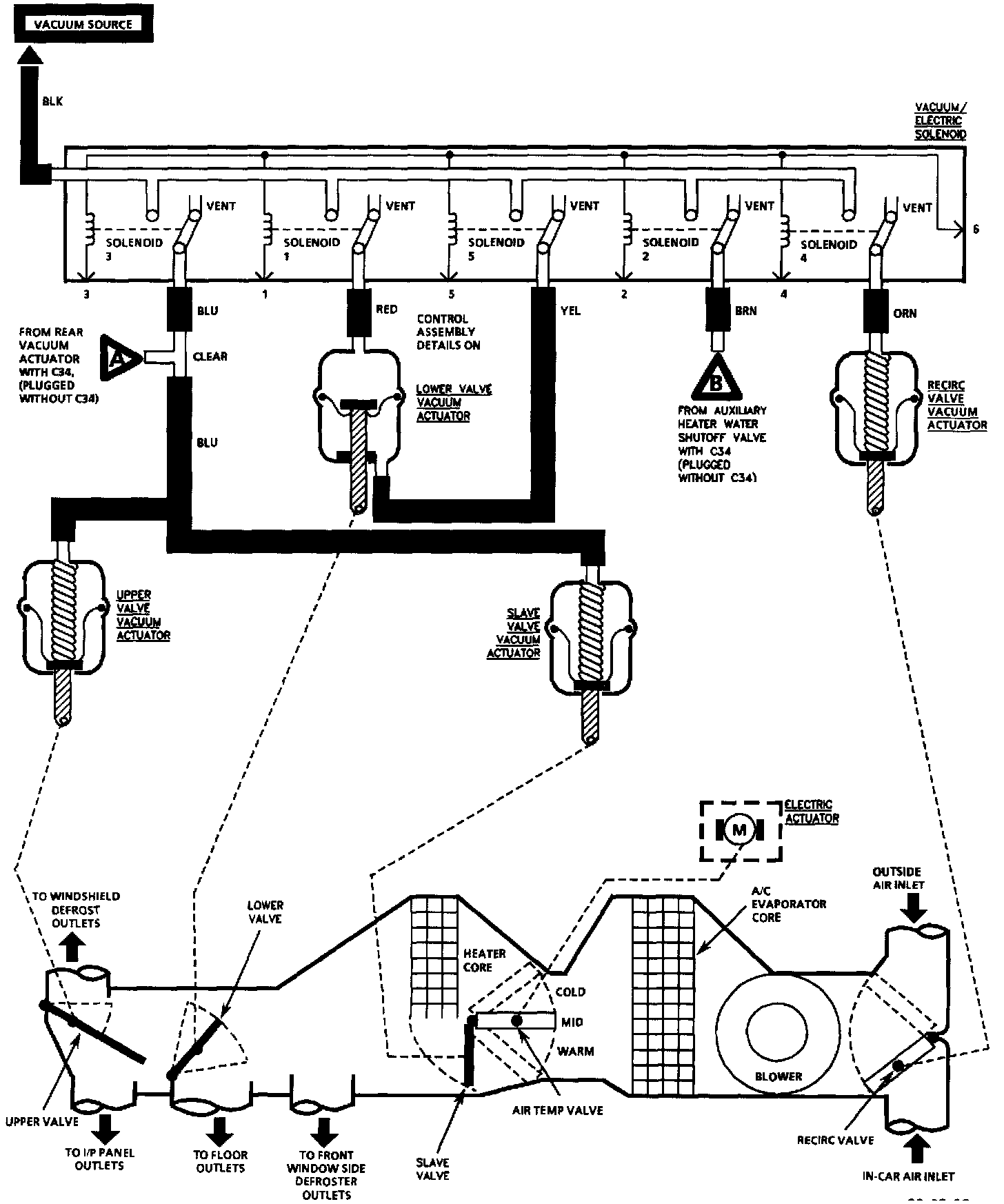

HVAC Air Delivery And Temperature Control: Manual A/C (C67 & C34 Or C34/C36)) (Part 1 Of 2):

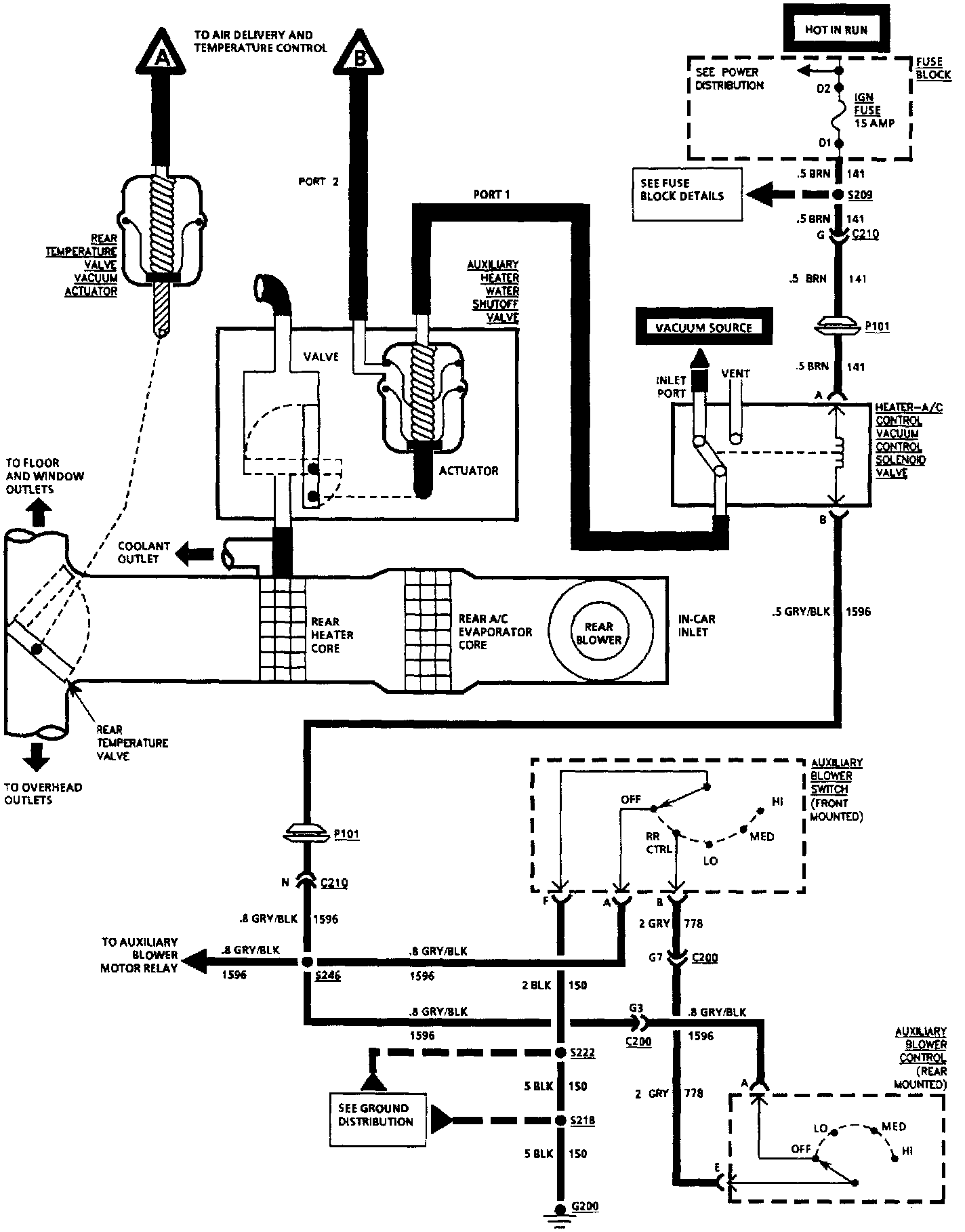

HVAC Air Delivery And Temperature Control: Manual A/C (C67 & C34 Or C34/C36)) (Part 2 Of 2):
