Control Assembly: Service and Repair

Description:

Remove or Disconnect
1. Battery ground (negative) cable.
2. Instrument panel accessory trim plate.

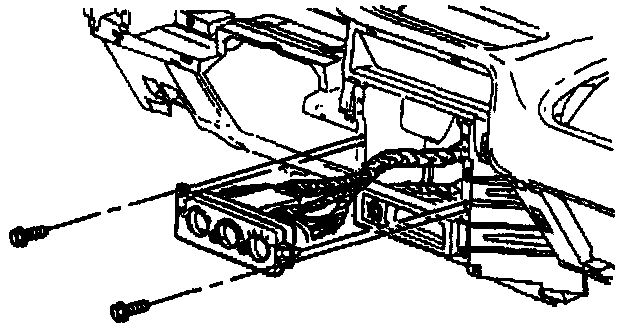

3. Bolts/screws from heater A/C controls.

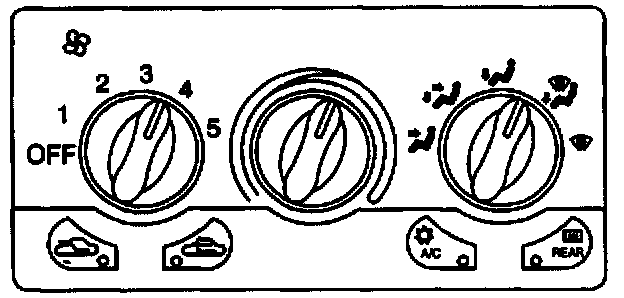

4. Heater A/C controls by pulling straight out from instrument panel.

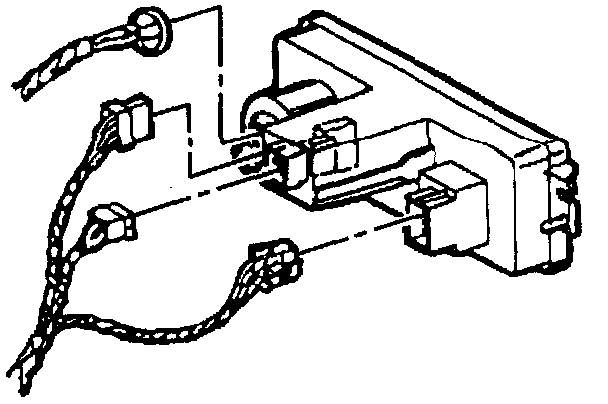

5. Electrical vacuum connectors.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Electrical vacuum connectors.
2. Heater A/C controls by pushing in.
3. Bolts/screws to heater A/C control.

Tighten
^ Bolts/screws to 2.5 N.m (22 lb.in.).

4. Instrument panel accessory trim plate.
5. Battery ground (negative) cable.
