Instrument Panel Insulator Replacement

Description:

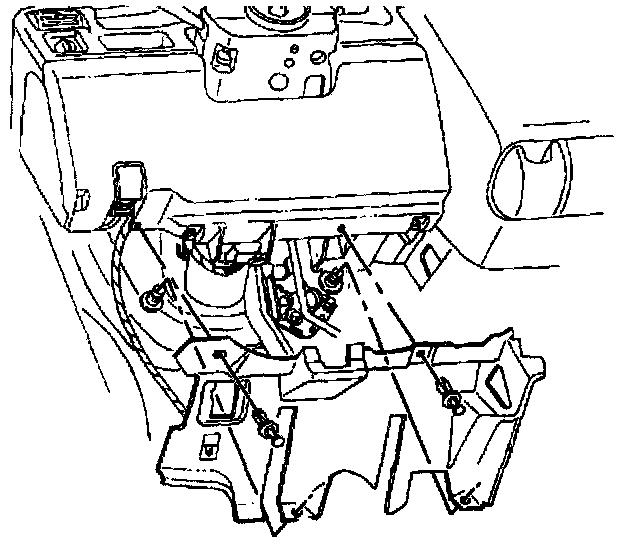

Remove or Disconnect

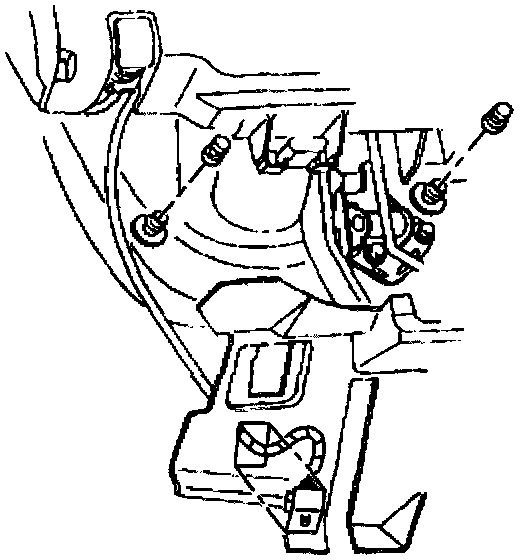

1. Push-in retainers from instrument panel insulator to instrument panel.

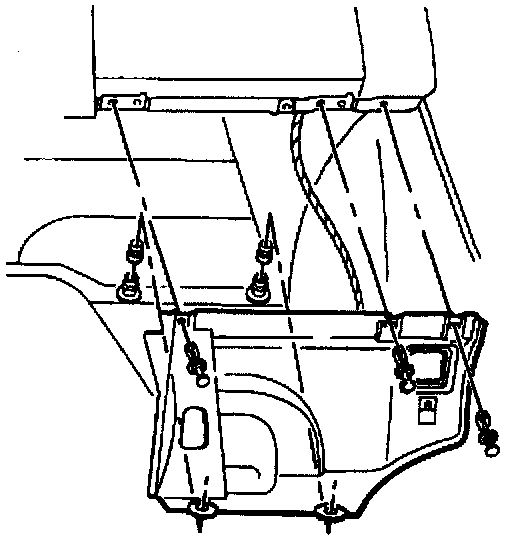

2. Press-on retainers from instrument panel insulator to dash mat.

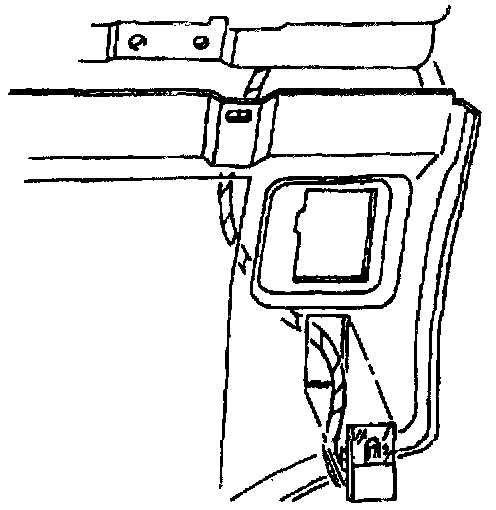

3. Instrument panel courtesy lamp by unsnapping from instrument panel insulator.
4. Instrument panel insulator from instrument panel.

Install or Connect
1. Instrument panel courtesy lamp by snapping into instrument panel insulator.
2. Position instrument panel insulator to instrument panel.
3. Push-in retainers to instrument panel insulator to instrument panel.
4. Press-on retainers to instrument panel insulator to dash mat.
