Instrument Panel Trim Panel Replacement

Description:

Remove or Disconnect

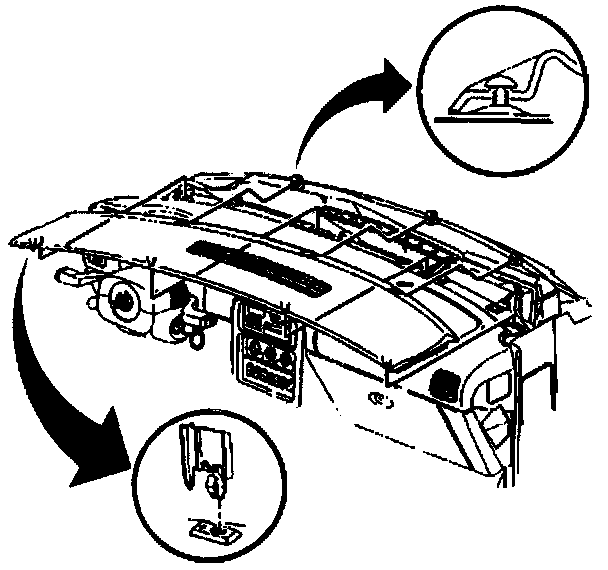

1. Instrument panel upper trim by lifting to release retaining clips at rear edge.
2. Security system LED and daytime running lamp sensor.
3. Instrument panel upper trim from instrument panel

Install or Connect
1. Security system LED and daytime running lamp sensor.
2. Slide forward edge of instrument panel upper trim into retainers on front of instrument panel.
3. Position locator tabs on instrument panel upper trim to instrument panel.
4. Align retaining clips with slots.
5. Push instrument panel upper trim to instrument panel to secure.
