Instrument Panel Cluster Replacement

Description:

Remove or Disconnect
1. Instrument panel cluster trim plate.

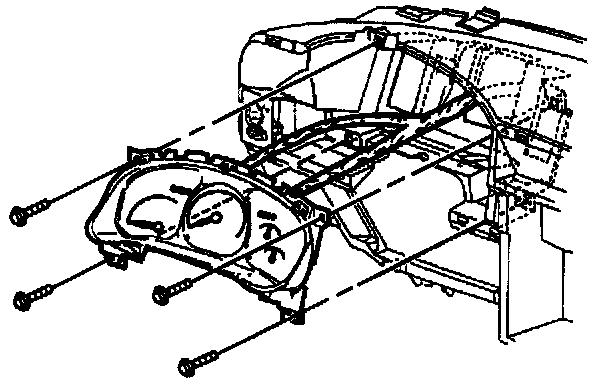

2. Screws from instrument panel cluster to instrument panel.
3. Instrument panel cluster from instrument panel.

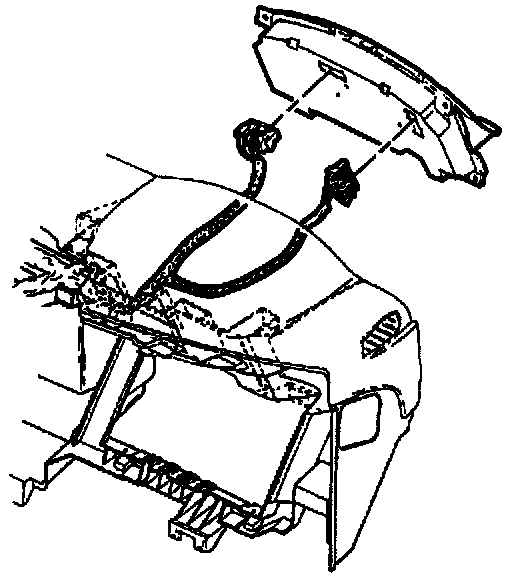

4. Electrical connectors.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Electrical connectors.
2. Position instrument panel cluster to instrument panel.
3. Screws to instrument panel cluster.

Tighten
^ Screws to 2.5 N.m (22 lb.in.). Tightening sequence: Lower left screw, Lower right screw, Upper left screw, Upper right screw.

4. Instrument panel cluster trim plate.
