Traction Control Indicator Lamp: Service and Repair

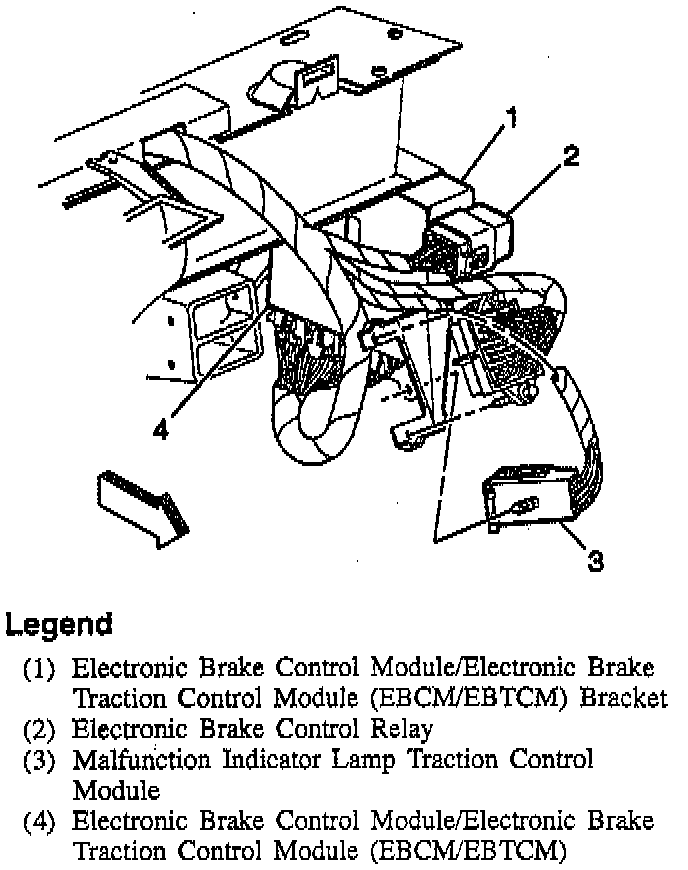

Malfunction Indicator Lamp Traction Control Module:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Instrument panel (I/P) sound insulator panel. Refer to Instrument Panel, Gages and Warning Indicators.
3. Release the lamp driver module from the Electronic Brake/Traction Control Module (EBCM/EBTCM) bracket.
4. Lamp driver module with black connector from I/P harness on left side near EBCM/EBTCM.

INSTALL OR CONNECT
1. Lamp driver module with black connector to I/P wire harness.
2. Secure lamp driver module to EBCM/EBTCM bracket with retainer.
3. I/P sound insulator panel. Refer to Instrument Panel, Gages and Warning Indicators.
4. Negative battery cable.
