Brake Light Switch: Adjustments

Stoplamp And Cruise Control Switch:

NOTE: Proper stoplamp switch adjustment is essential. Improper Stoplamp switch adjustment may cause brake drag, heat buildup and excessive brake lining wear.

Important
- The Stoplamp switch and the cruise control release switch should be adjusted together. The adjustment procedure for these switches are identical. For cruise control release switch adjustment.

With the brake pedal in the fully released position, the Stoplamp plunger should be fully depressed against the brake pedal shanks.

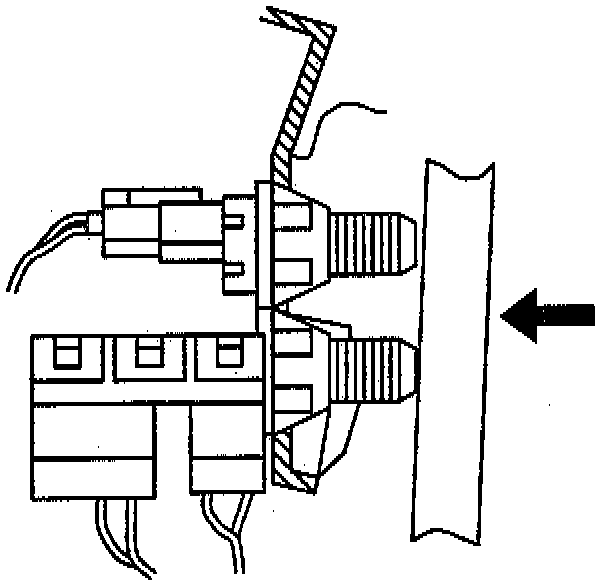

Stoplamp Switch And Cruise Control Release Switch Adjustment (1 Of 2):

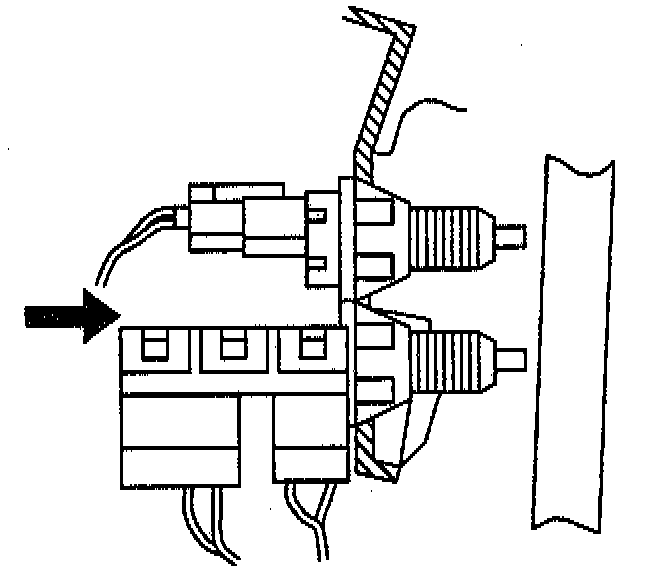

Stoplamp Switch And Cruise Control Release Switch Adjustment (2 Of 2):

Adjust
1. Insert Stoplamp switch and cruise control switch (if equipped) into brake pedal bracket.
2. Push brake pedal forward to set brake push rod into booster.
3. Pull brake pedal to the rear, against internal stop. The Stoplamp switch and cruise control switch (if equipped) will be adjusted.

Inspect
- Stoplamp switch for proper adjustment.
