Underhood Lamp: Service and Repair

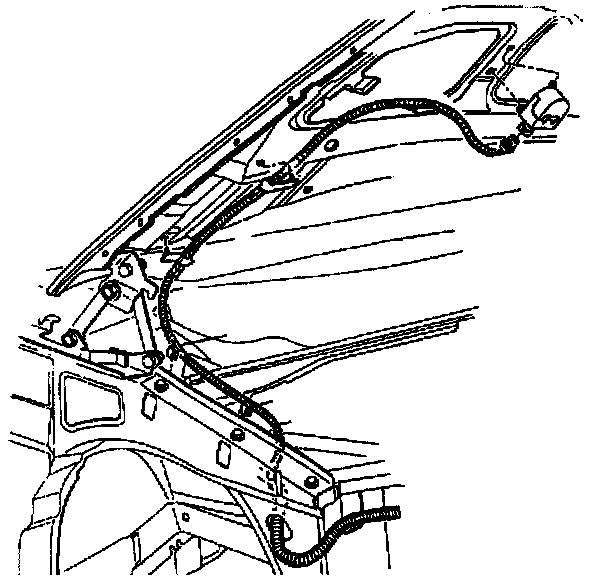

Description:

Remove or Disconnect
1. Open and support hood.
2. Harness electrical connector from underhood lamp.
3. Using small flat-bladed tool release lower underhood lamp retainers from hood.
4. Pull out and down to release upper tab.
5. Underhood lamp from hood.
6. Harness retainers from underside of hood.
7. Harness from hood.

Install or Connect
1. Align harness retainers to holes in underside of hood.
2. Press in retainers.
3. Align lower tab on lamp to lower slot in underside of hood.
4. Press lamp down into slot and align upper tab to top slot and snap in.
5. Harness electrical connector to underhood lamp.
6. Close hood.
