System Operation

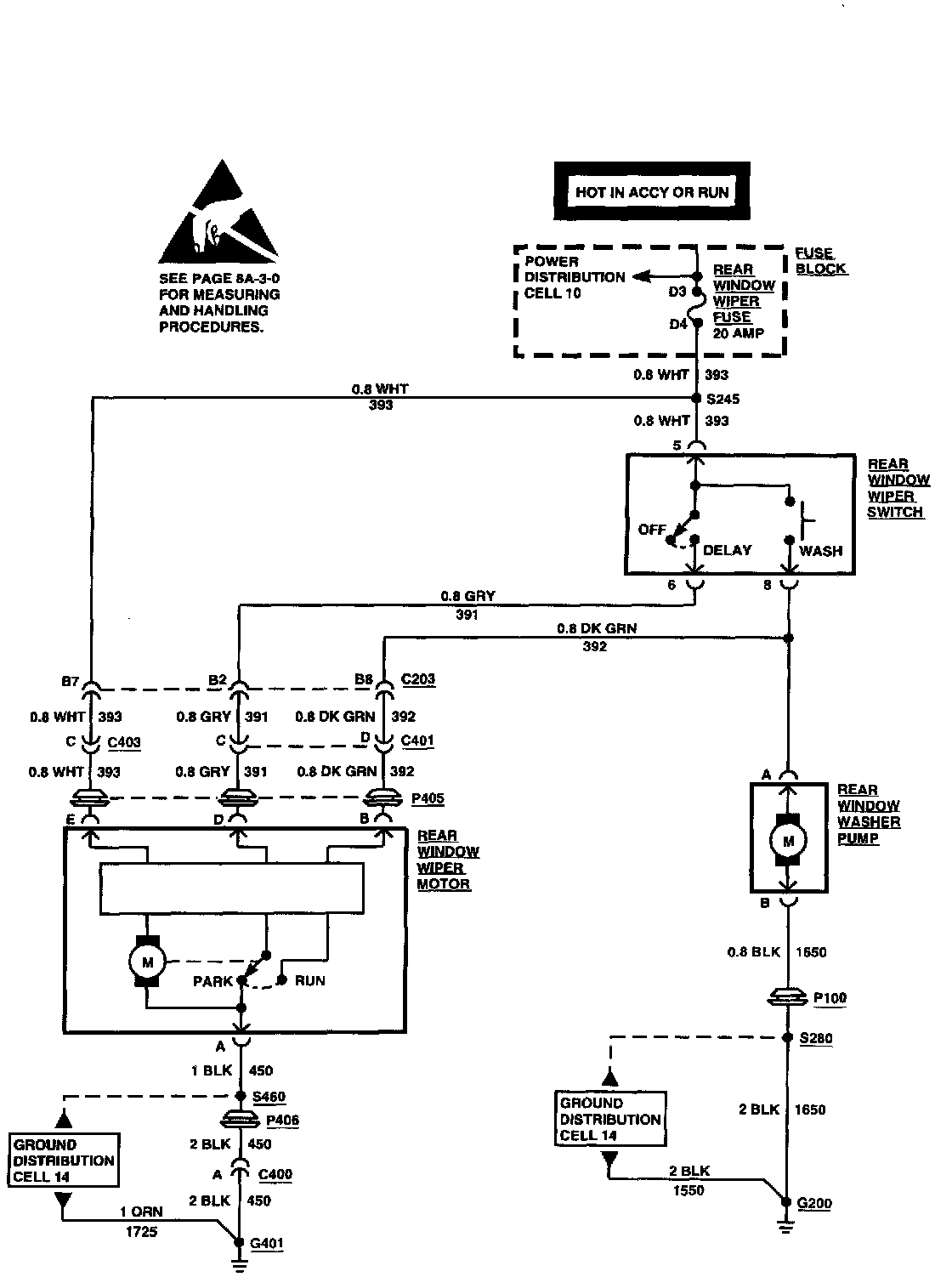

Wiring Diagram:
With the ignition switch in "ACCY" or "RUN," voltage is applied to terminal "F" of the wiper motor assembly and to terminal "8" of the wiper/washer switch assembly through CKT 393.
With the ignition switch in "ACCY" or "RUN," voltage is applied to terminal "F" of the wiper motor assembly and to terminal "8" of the wiper/washer switch assembly through CKT 393.
