Wiper Blade: Testing and Inspection

Description:

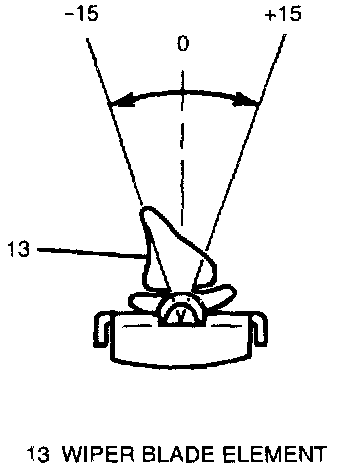

Remove the wiper blade assemblies from the wiper arm assemblies. Look down the length of the wiper blade element (13). The rubber part of the wiper blade element (13) that contacts the glass must be on the center line of the wiper blade assembly ±15 degrees. Replace the wiper blade element if necessary.
