Astro Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Pump
>>
Front Washer Pump
Front Washer Pump

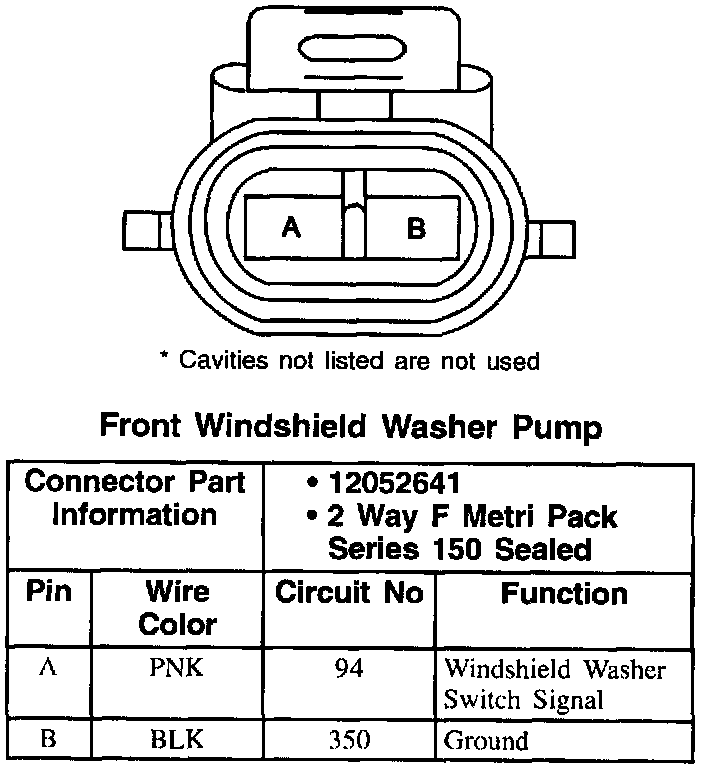

Front Windshield Washer Pump:
