Home >> Chevy Truck >> 1998 >> Astro Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Center Mounted Brake Lamp >> Diagrams

Center Mounted Brake Lamp: Diagrams

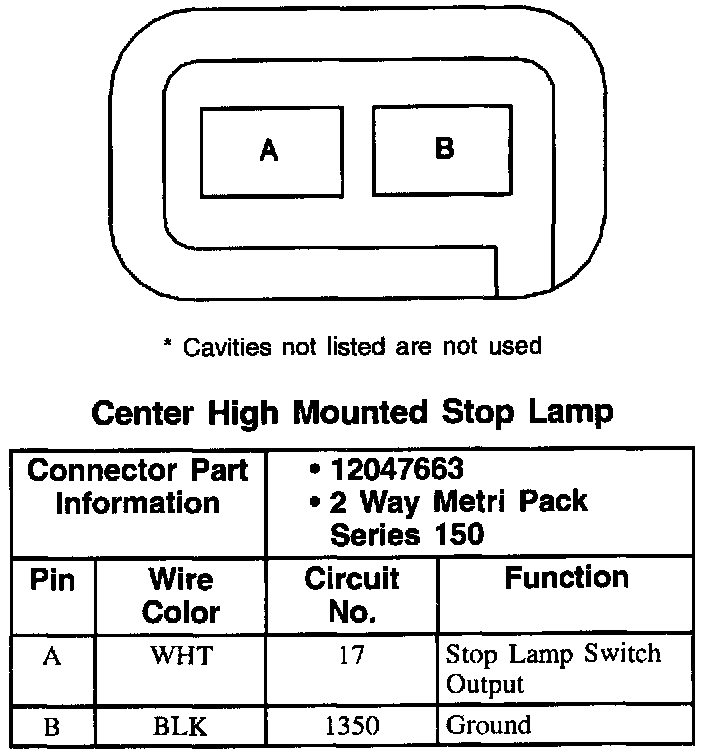

Center High Mounted Stop Lamp:
