Rear Heater Jumper Harness Connector to Convenience Center
Rear Heater Jumper Harness Connector to Convenience Center

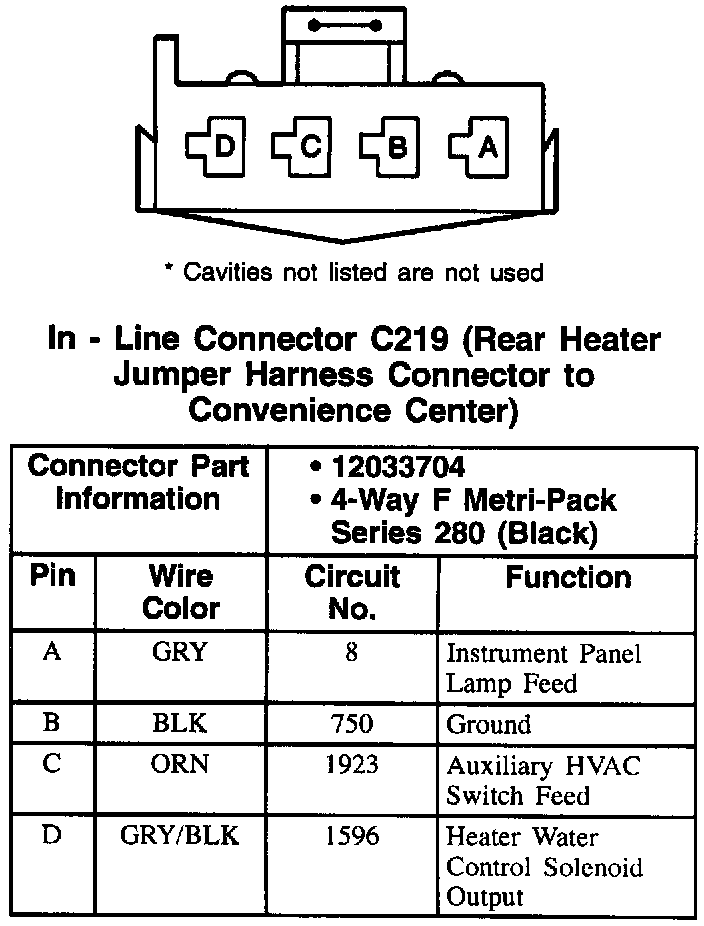

C219: Rear Heater Jumper Harness Connector To Convenience Center:
