Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1998
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Marker Lamp
Marker Lamp
RH Rear Side Marker Lamp:

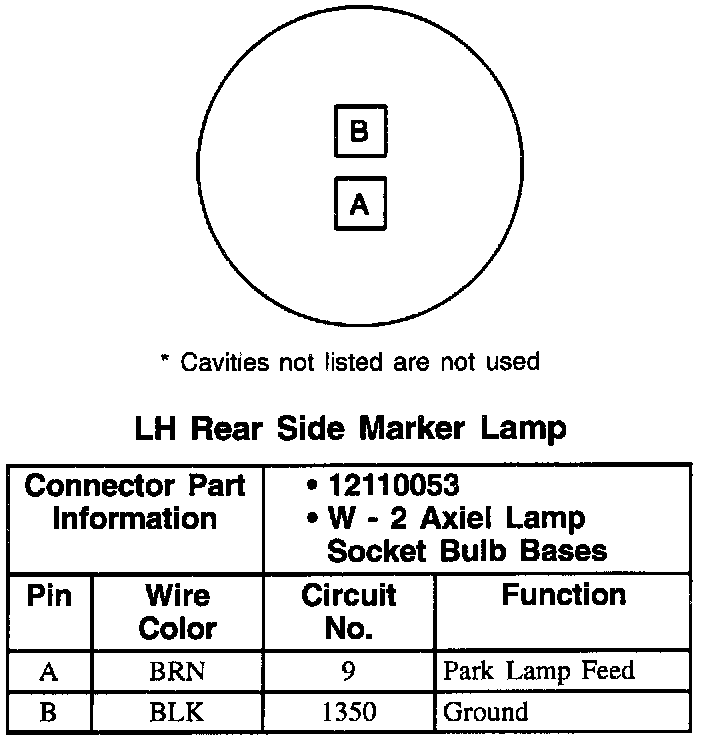

LH Rear Side Marker Lamp:

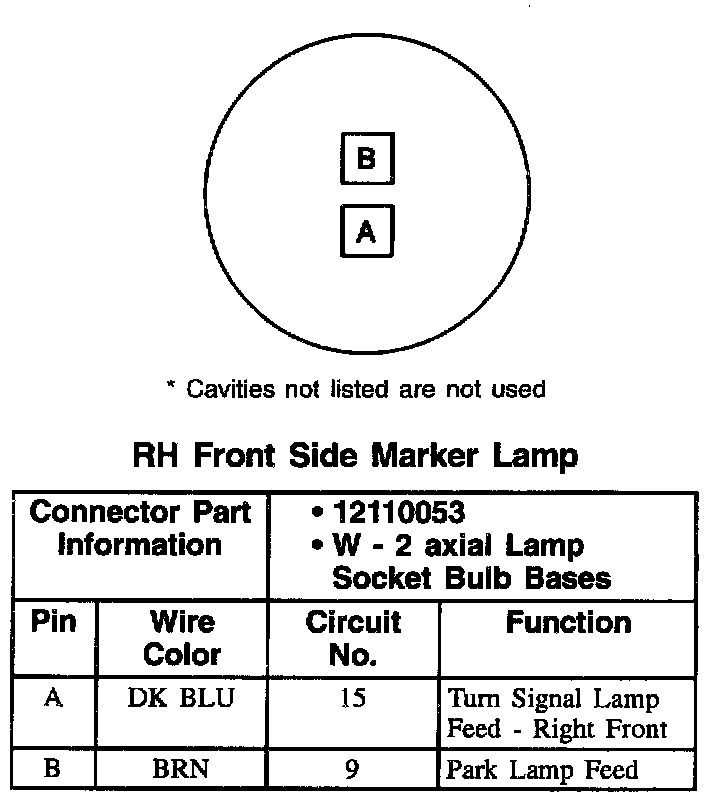

RH Front Side Marker Lamp:

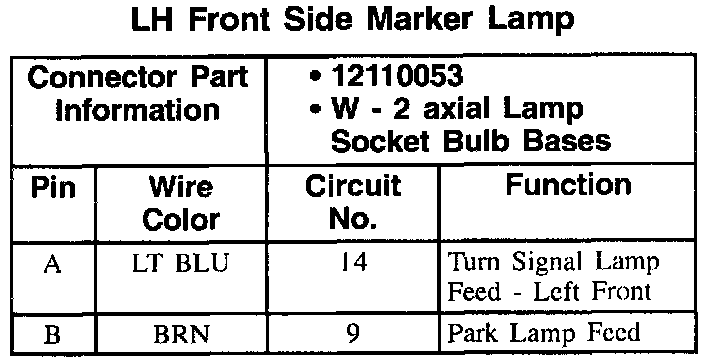

LH Front Side Marker Lamp:
