Home >> Chevy Truck >> 1998 >> Astro Van L AWD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Steering Pressure Control Valve >> Electronic Variable Orifice Solenoid

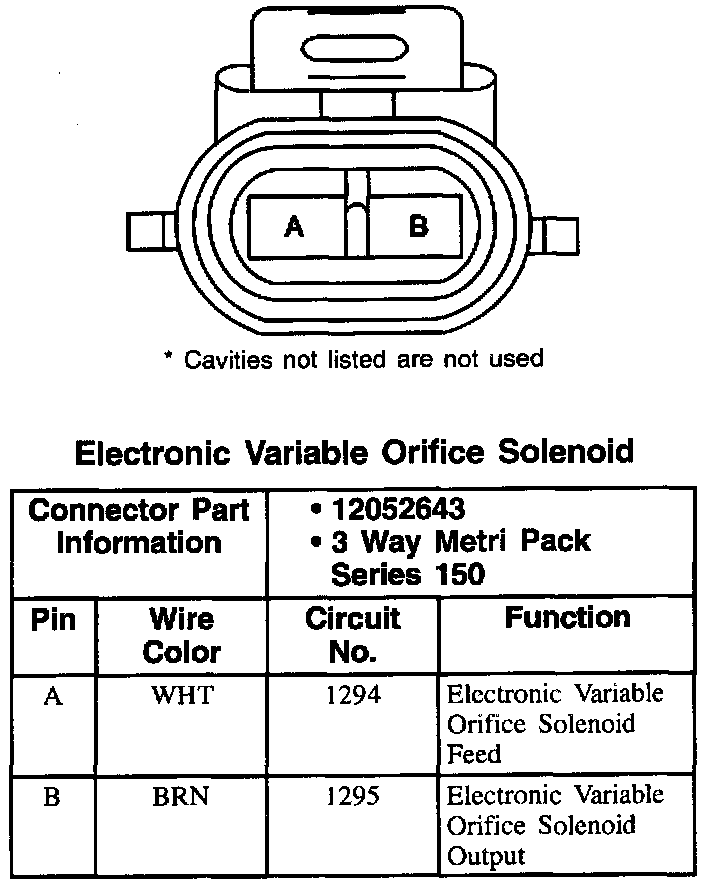

Electronic Variable Orifice Solenoid

Electronic Variable Orifice Solenoid:
