Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1998
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Refrigerant Pressure Sensor / Switch, HVAC
Refrigerant Pressure Sensor / Switch, HVAC

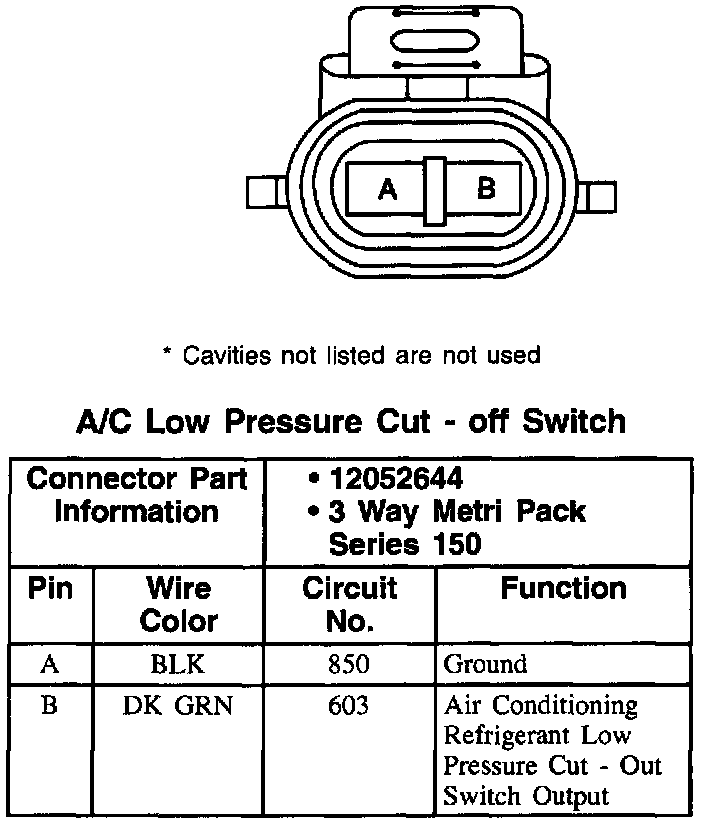

A/C Low Pressure Cut - Off Switch:

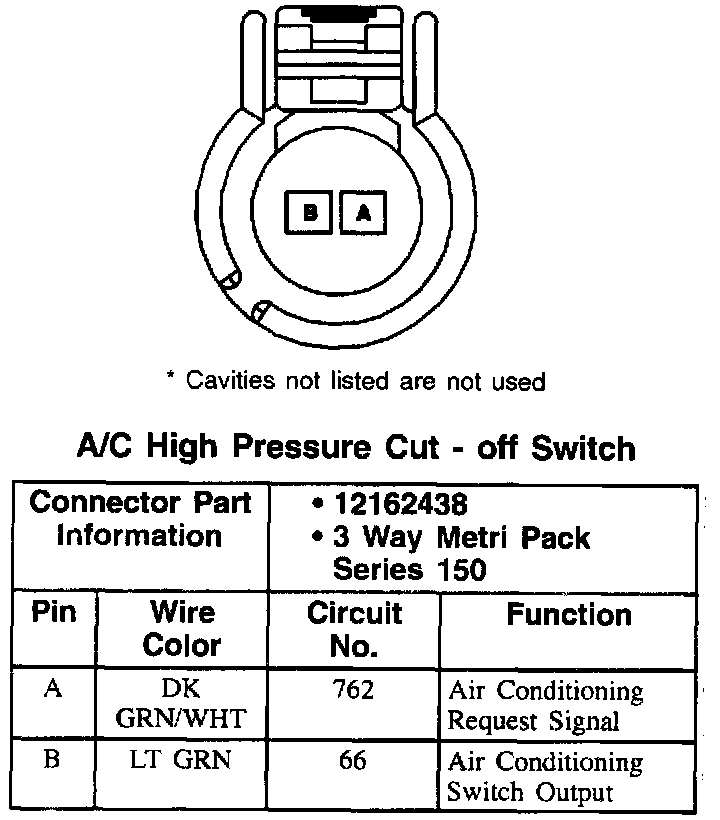

A/C High Pressure Cut - Off Switch:
