On-Vehicle Service






REMOVE OR DISCONNECT

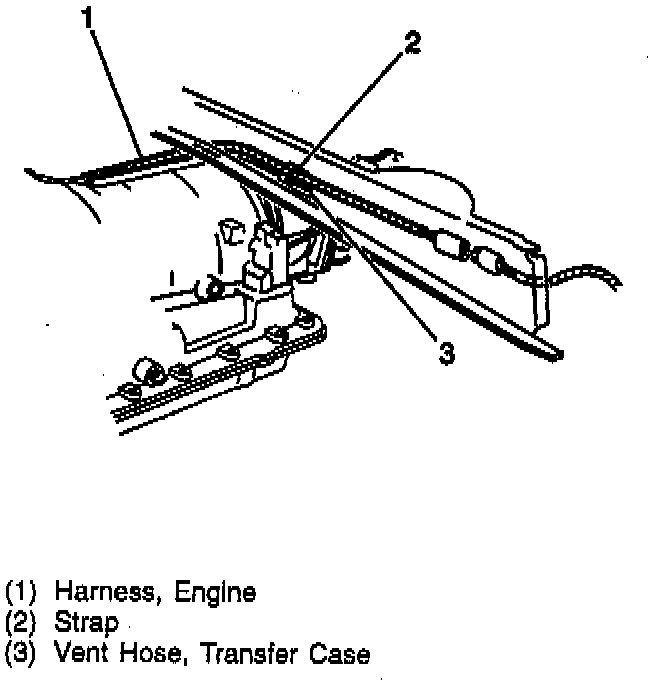

1. Strap securing the vent hose and engine harness to the frame rail.
2. Vent hose from the frame rail, engine harness, and transfer case.

INSTALL OR CONNECT

Important: When replacing the vent hose, ensure the vent hose is route the same as shown. The hose must be free of kinks after installation to ensure proper transfer case ventilation.

1. Vent hose to the frame rail, engine harness, and transfer case.
2. Strap securing the vent hose and engine harness to the frame rail.
