Brake Pedal Assy: Service and Repair

REMOVAL PROCEDURE

CAUTION: Before removing or installing any electrical unit or when a tool or equipment could easily come in contact with "live" exposed electrical terminals, disconnect the negative battery cable to help prevent personal injury and/or damage to the vehicle or components. Unless instructed otherwise, the ignition switch must be in the "OFF" or "LOCK" position.

1. Disconnect the negative battery cable.
2. Disable the SIR.

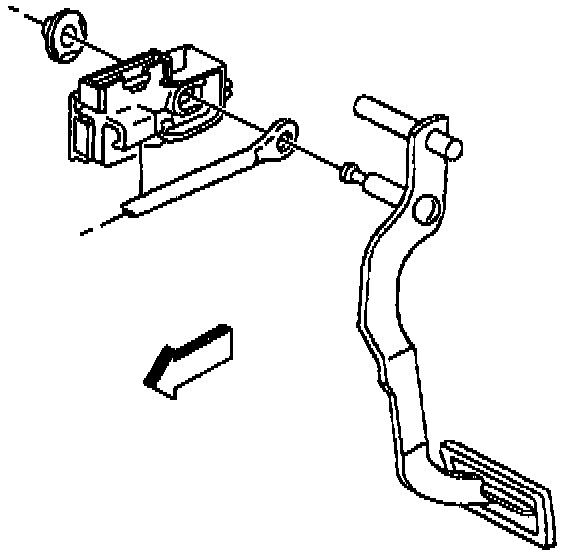

3. Remove the electrical connector from the stoplamp switch.
4. Remove the pushrod retainer.
5. Remove the stoplamp switch.
6. Remove the pushrod.

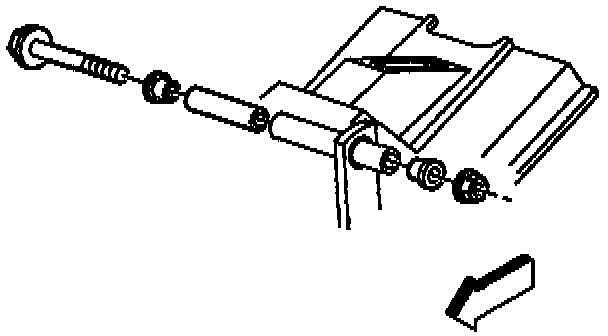

7. Remove the nut.
8. Remove the brake pedal bolt.
9. Remove the bushings and the spacer.

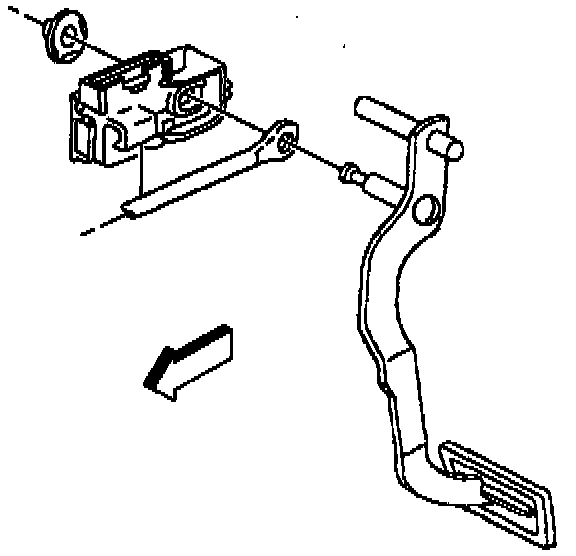

10. Remove the brake pedal.


INSTALLATION PROCEDURE

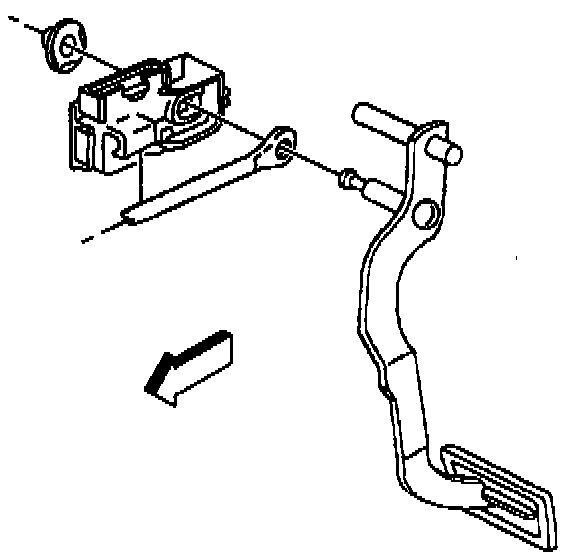

1. Install the brake pedal.

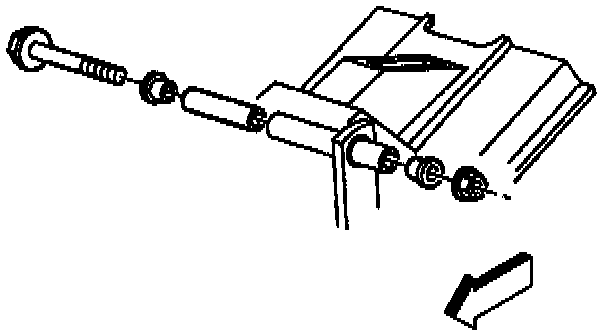

2. Install the spacer and the bushings.
3. Install the bolt and nut.
^ Tighten the nut to 47 Nm (35 ft. lbs.).

NOTICE: Fastener Notice in Service Precautions.

4. Install the pushrod.





5. Install the stoplamp switch.
6. Install the pushrod retainer.
7. Install the electrical connector on the stoplamp switch.
8. Enable the SIR.
9. Connect the negative battery cable.
