P1810

Diagnostic Chart:

Wiring Diagram:

CIRCUIT DESCRIPTION

The Automatic Transmission Fluid Pressure Manual Valve Position Switch (TFP Val. Position Sw.) consists of five pressure switches (two normally-closed and three normally-open), and a Transmission Fluid Temperature (TFT) sensor combined into one unit. The combined unit mounts on the valve body. The Vehicle Control Module (VCM) supplies the battery voltage for each range signal. By grounding one or more of these circuits through various combinations of the pressure switches, the VCM detects which manual valve position you select. The VCM compares the actual voltage combination of the switches to a TFP Valve Position Switch combination table stored in memory.

The TFP Val. Position Sw. cannot distinguish between Park and Neutral because the monitored valve body pressures are identical. With the engine OFF and the ignition switch in the RUN position, the TFP Val. Position Sw. indicates Park/Neutral.

Disconnecting the transmission 20-way connector removes the ground potential for the three range signals to the VCM. In this case, with the engine OFF, and the ignition switch in the RUN position, D2 will be indicated.

When the VCM detects an invalid state of the TFP Val. Position Sw. or the TFP Val. Position Sw. circuit by deciphering the TFP Val. Position Sw. inputs, then DTC P1810 sets. DTC P1810 is a type B DTC.

CONDITIONS FOR SETTING THE DTC

DTC P1810 sets if any of the following fail Conditions occurs two consecutive times:

^ Condition 1 detects an illegal switch combination.

^ Condition 2 detects D2, D4 or Rev during an engine start.

^ Condition 3 detects Park or Neutral when the vehicle should be in D4.

Condition 1

^ The system voltage is 10-16 volts.

^ The engine speed is greater than 450 RPM for 5 seconds.

^ Not in fuel cutoff.

^ The VCM detects an illegal TFP Val. Position Sw. state.

^ All conditions met for 60 seconds.

Condition 2

^ No VSS Assy. DTCs P0502 or P0503.

^ The system voltage is 10-16 volts.

^ The engine speed is less than 80 RPM for 0.1 second; then

the engine speed is 80-550 RPM for 0.1 second; then

the engine speed is greater than 550 RPM.

^ The vehicle speed is less than 3 km/h (2 mph).

^ The detected gear range is D2, D4 or Rev. during an engine startup.

^ All conditions met for 5 seconds.

Condition 3

^ No VSS Assy. DTCs P0502 or P0503.

^ The system voltage is 10-16 volts.

^ The TP angle is 10-50%.

^ The VCM commands fourth gear.

^ The engine speed is greater than 450 RPM for 5 seconds.

^ Not in fuel cutoff.

^ The engine torque is 40-400 lb. ft.

^ The speed ratio is 0.6-0.75 (speed ratio is engine speed divided by transmission output speed).

^ The TCC is locked ON.

^ The detected gear range is Park or Neutral.

^ All conditions met for 10 seconds.

ACTION TAKEN WHEN THE DTC SETS

^ The VCM illuminates the Malfunction Indicator Lamp (MIL).

^ The VCM commands D2 line pressure.

^ The VCM commands a D4 shift pattern

^ The VCM freezes shift adapts from being updated.

^ DTC P1810 stores in VCM history.

CONDITIONS FOR CLEARING THE MIL/DTC

^ The VCM turns OFF the MIL after three consecutive trips without a failure reported.

^ A scan tool can clear the DTC from the VCM history. The VCM clears the DTC from the VCM history if the vehicle completes 40 warm.up cycles without a failure reported.

^ The VCM cancels the DTC default actions when the fault no longer exists and the ignition is OFF long enough in order to power down the VCM.

DIAGNOSTIC AIDS

^ Refer to the TFP Valve Position Switch Logic table for the normal range signals and the illegal combinations. On the table, ON is 0 volts, OFF is B+.

^ Inspect the wiring at the VCM, the transmission connector and all other circuit connecting points for the following conditions:

- A bent terminal

- A backed out terminal

- A damaged terminal

- Poor terminal tension

- A chafed wire

- A broken wire inside the insulation

- Moisture intrusion

- Corrosion

^ When diagnosing for an intermittent short or open condition, massage the wiring harness while watching the test equipment for a change.

^ Refer to the TFP Valve Position Switch Resistance Check or the Functional Test Procedure for further information.

TEST DESCRIPTION

The numbers below refer to the step numbers on the diagnostic table.

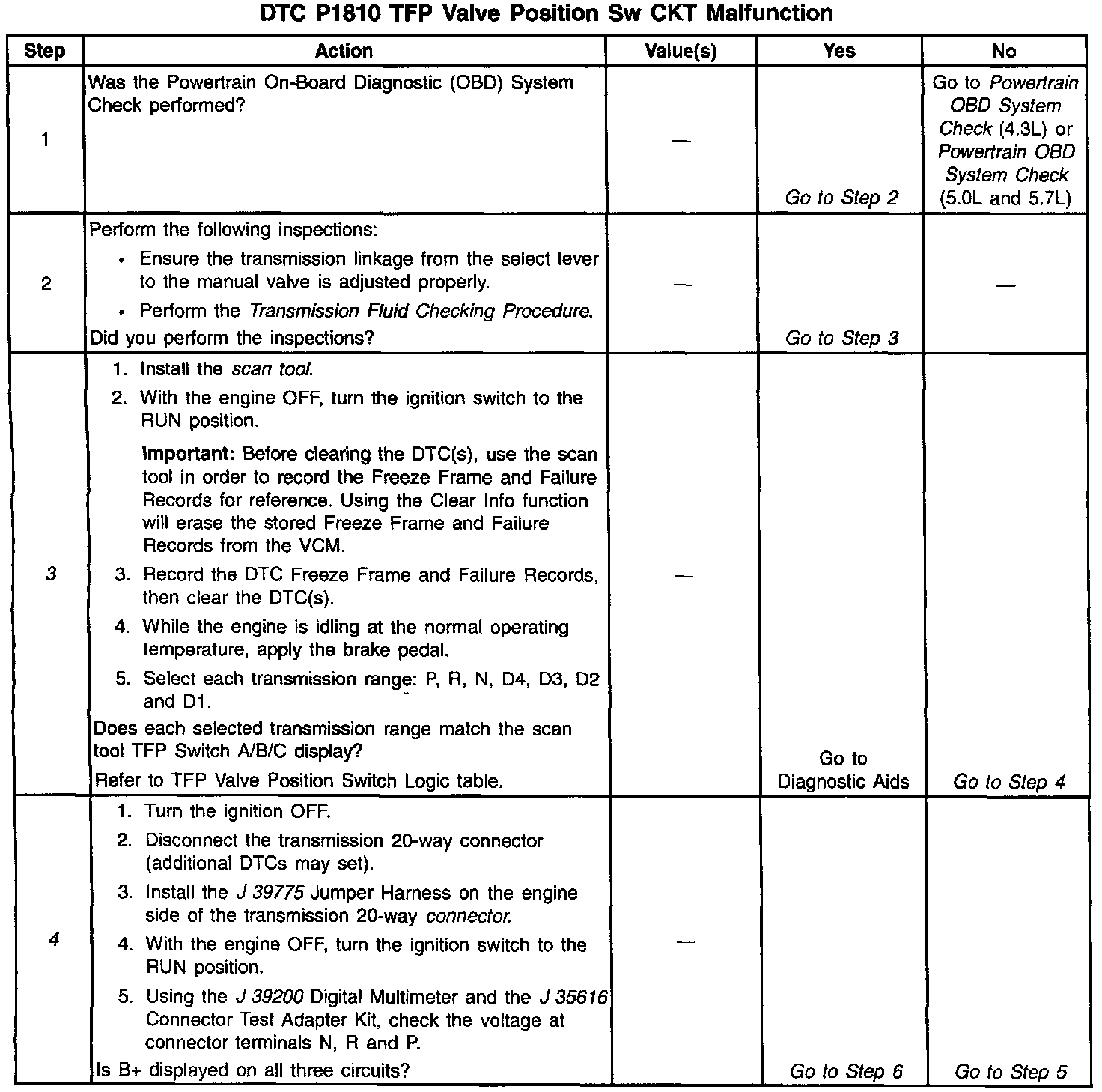

3. This step compares the indicated range signal to the selected manual valve.

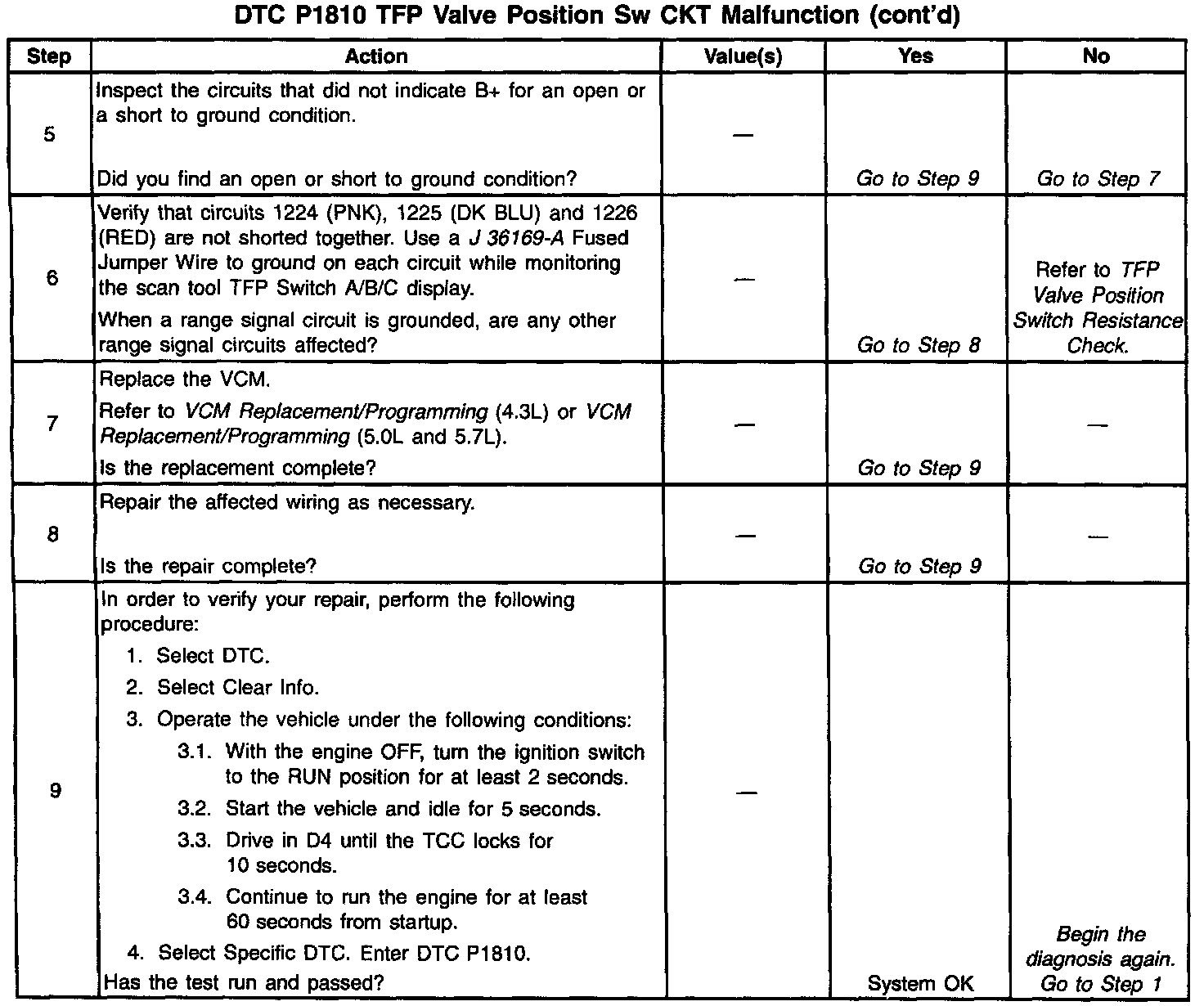

4. This step tests for correct voltage from the VCM to the transmission 20-way connector.
